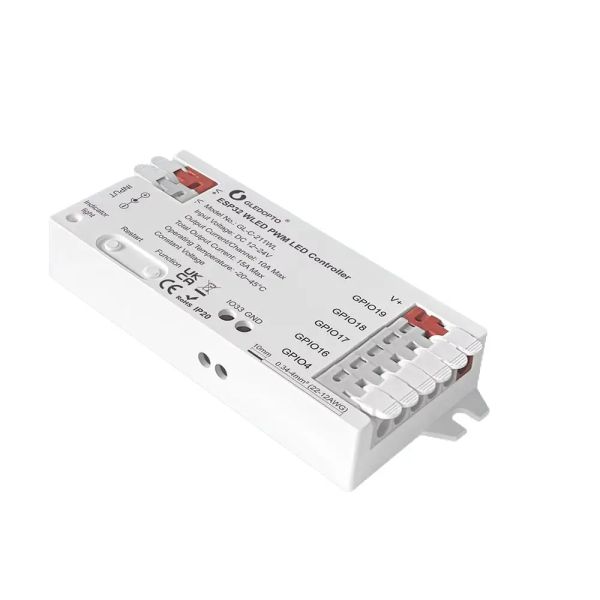

Gledopto GL-C-211WL smart Wi-Fi PWM WLED controller for analogue (RGB, RGBW, RGBCCT, CCT, single-color) LED strips

Product Overview The Gledopto GL-C-211WL is an advanced PWM dimmer LED controller powered by the ESP32 chip, tailored for precise control of various analog LED strips, including RGB, RGBW, RGBCCT, CCT, and single-color strips. With its WLED firmware, it offers excellent integration into open-source smart home systems, supports local web-based control, and delivers professional-grade lighting management. It features a built-in ESP32 chip and supports analog LED strips with 12V-24V DC power input. The maximum rated current at the output is 10A per channel, with a total of up to 15A.

About GLEDOPTO Gledopto is a popular smart home brand known for its high-quality smart lighting solutions, including premium smart LED bulbs and LED lamps. The WLED series stands out for its extensive and seamless integration with numerous open-source systems like Home Assistant and its support for local LAN-based control. Gledopto products are renowned for their quality materials, design, reliability, and compatibility with various smart home ecosystems.

Key Features

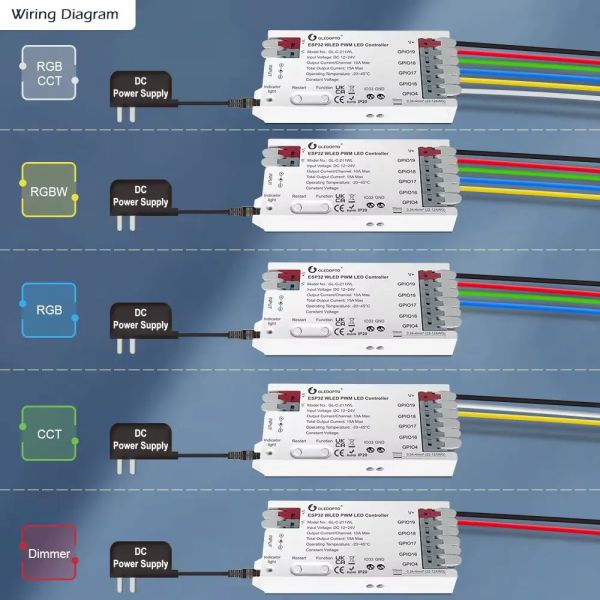

• Versatile LED Strip Compatibility: Supports a wide range of analog LED strips, including RGB, RGBW, RGBCCT, CCT, and single-color dimmers, enabling flexible lighting configurations.

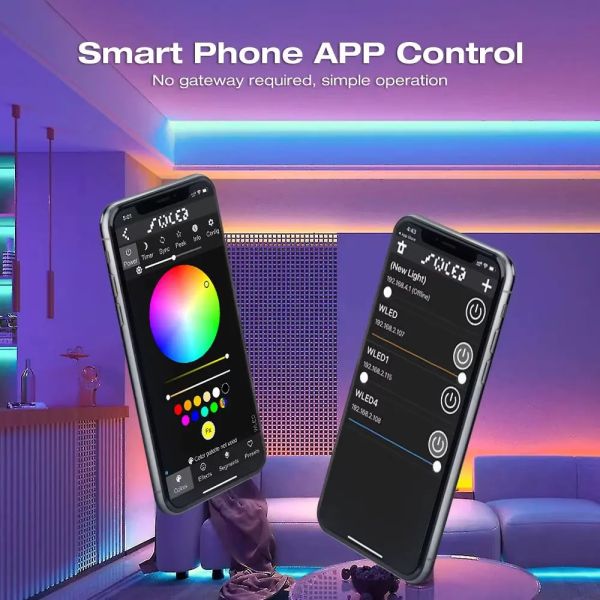

• Advanced Control Options: Full lighting management via WLED control, with app-based operation, smart voice commands, and WLED remote control, ensuring user-friendly operation.
• Durable Design: Made from robust PC material, guaranteeing long service life and reliability in various installation environments.

Smart Home Protocols and Integrations The GL-C-211WL utilizes open-source WLED firmware, allowing integration with various open-source smart home systems. Users can manage lighting settings with dedicated apps, voice commands, and WLED remotes, fostering a seamless smart home experience. Although the web settings of WLED devices allow for configuring various LED types and control modes, the GL-C-211WL module only supports and connects to analog LEDs.

Technical Specifications

• Product Name: ESP32 PWM Dimmer WLED Controller for Analog LED Strips
• Model Number: GL-C-211WL
• Input Voltage: DC12-24V
• Total Output Current: 10A/channel, total max. 15A
• Maximum Load Power: 360W
• Control Mode: App + Voice Commands + WLED Remote Control
• Material: PC
• Color: White
• Application: RGB, RGBW, RGBCCT, CCT, and Single-Color Strips

The Gledopto GL-C-211WL is a versatile and reliable solution for those seeking advanced control of analog LED lighting systems, seamlessly integrating into modern smart home environments.
