Gledepto's Zigbee Pro product line offers innovative, professional smart LED controllers that connect to a smart home system via Zigbee 3.0 protocol. Pro devices can also be remotely controlled locally from 2.4GHz RF remote controllers and wireless RF wall panels, and support Alexa and Google Home voice control (depending on the Zigbee gateway).
Gledopto Pro devices offer extremely broad compatibility, pairing and control with all major Zigbee 3.0 gateways: they are compatible with Sonoff ZBBridge (Zigbee Bridge) and SmartWise eWeLink Zigbee gateways, Tuya/SmartLife Zigbee gateways, Philips Hue bridge, Aeotec SmartThings hub, homee, ConBee II, Hubitat Elevation, Amazon Alexa devices with Zigbee gateway, among others.
In addition, the Pro Series products can be remotely controlled by Gledopto's 2.4GHz LED remote control and wireless wall panel, so that not only smart control but also local remote control is available for the products.

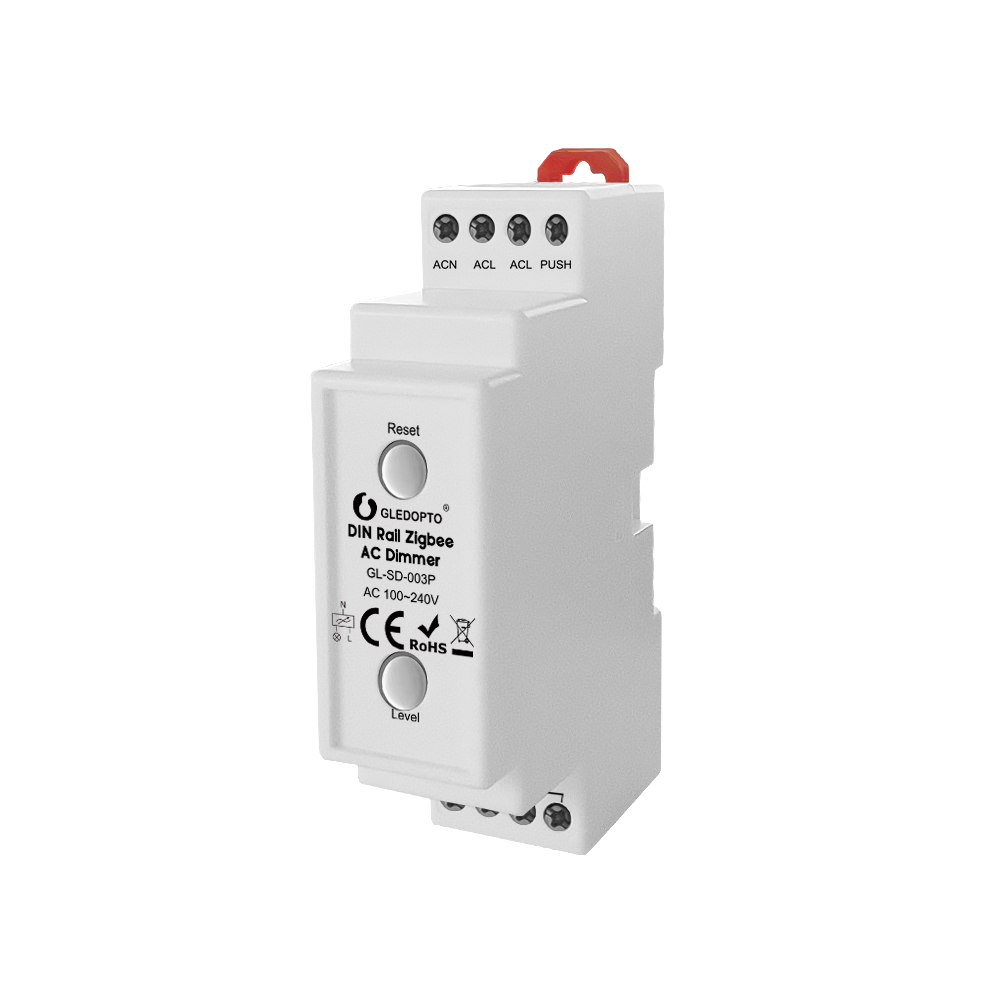

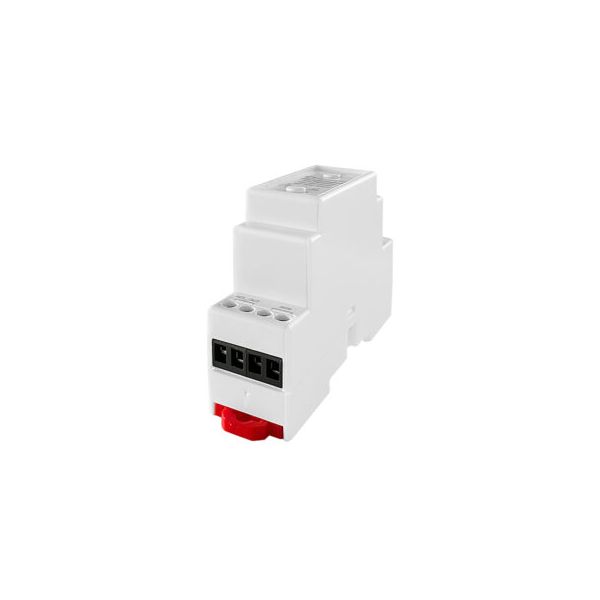

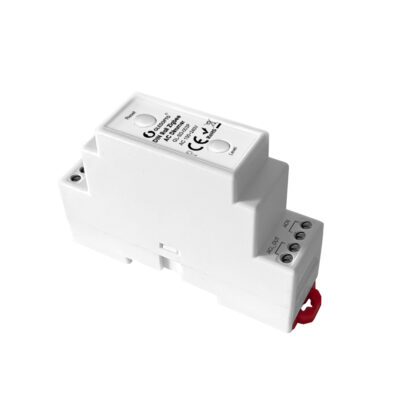

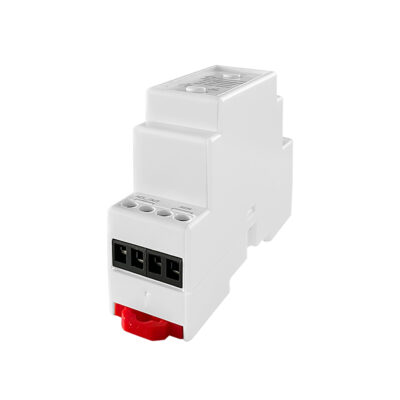

The Gledopto AC dimmer can be easily installed in an electric cabinet on a DIN-rail. It does not require a separate power supply, as both the input and output sides use 100-240V AC. It has a maximum rated output power of 400W on the output side, and 200W for dimmable LEDs.
The minimum brightness level can be set with a button on the device, below which the dimmer will not let the brightness drop, thus preventing flickering of light sources at low brightness levels.
The device can be used to adjust the brightness of :
- dimmable LED lights/drivers,
- incandescent or HV halogen lamps,
- LV halogen lamps powered by electronic transformer
The smart dimmer can be controlled in three ways:
1. From wall-mounted push-button switch(es): if you press the switch briefly, it switches the light sources on and off, if you hold it down, it controls the brightness.
2. 2.4GHz radio frequency (RF) remote controllers and wireless RF wall panels
3. via the Zigbee gateway (manually from your phone or via smart home automation)
Product features:
- AC dimmer for dimming 230V AC light sources
- Easy integration with Zigbee wireless smart home controls
- Compatible with almost all major Zigbee gateways. Sonoff / eWeLink with Zigbee gateways, Tuya/SmartLife with Zigbee gateways, Philips Hue bridge, SmartThings / Aeotec with gateway, homee, ConBee II, Hubitat Elevation, Amazon with Zigbee gateways.
- Smart home app - depending on the Zigbee gateway (eWeLink / Tuya / SmartLife / Hue / SmartThings / Apple Home / Google Home / Alexa / etc.)
- Zigbee mesh function: yes
- Voice control - Google Assistant or Alexa, depending on the Zigbee gateway
- Can be controlled from 2.4GHz RF remote controllers and RF wall panels (separately sold products), no Zigbee or other hub required for RF remote control

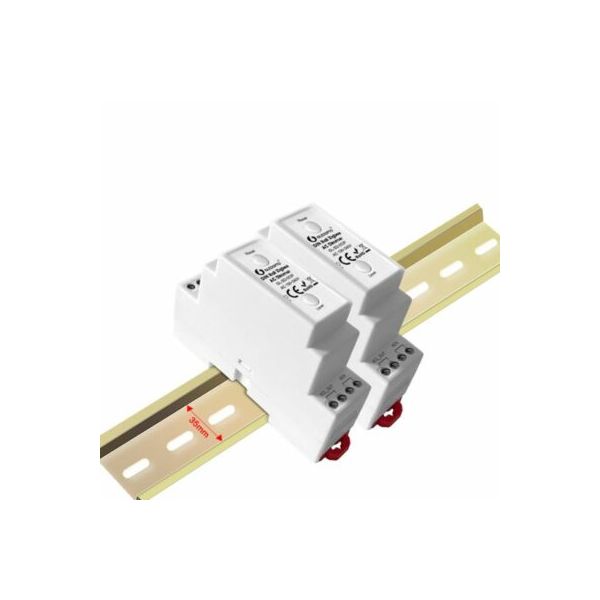

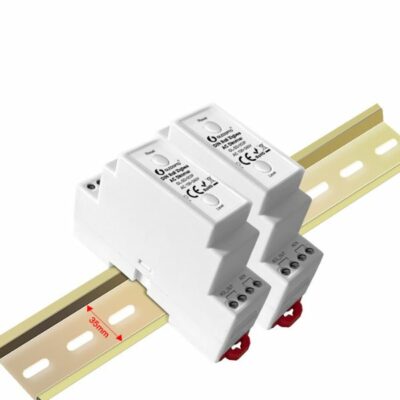

- DIN-rail mounting in electrical cabinets
- Controlled circuit: max 1.5A / 400W, for dimmable LED: 200W
Additional information
| General |
|---|
| Brand | Gledopto |
|---|
| Factory SKU ID | GL-SD-003P |
|---|
|
| Electricity properties |
|---|
| 2-way or 3-way switching | it can be controlled from multiple Gledopto RF 2.4GHz remote controllers and wireless wall panels, multiple momentary / push button switches can be connected to it |
|---|
|
| Smart home protocols |
|---|
|
| Remote control, smart control |
|---|
| Cloud mode | depends on the Zigbee Bridge |
|---|
|
| More features |
|---|
| Operating temperature range | -20℃ – 60℃ |
|---|
| Direct local remote control | yes, wireless local remote control supported from Gledopto 2.4GHz remote controllers and wall panels |
|---|
| Dimmer feature | yes |
|---|
| DIN rail compatible | yes |
|---|
| IP rating | IP20 |
|---|
| LAN mode | depends on the Zigbee Bridge |
|---|
| MQTT support | depends on the Zigbee Bridge |
|---|
| Notification functions | depends on the Zigbee Bridge |
|---|
| Rated current (output) | 1,5A |
|---|
| Rated power (output) | 400W, LED: 200W |
|---|
| Rated voltage (output) | 100V-240V AC |
|---|
| RF transmitter / receiver | 2.4GHz RF receiver |
|---|
| Schedulers, timers | depends on the Zigbee Bridge |
|---|
| Thread | no |
|---|
| Web admin interface | depends on the Zigbee Bridge |
|---|
| Wi-Fi | no |
|---|
| Zigbee | yes |
|---|
| Z-Wave | no |
|---|
| Physical on/off button on device | yes |
|---|
| Device power supply | 110V-240V AC ±10>#/p### |
|---|
| Bundle | No |
|---|

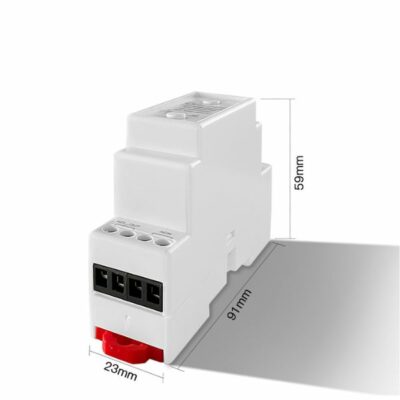

| Size | 59 x 24 x 91 mm |
|---|
| Supported protocols | RF receiver (2.4 GHz), Zigbee |
|---|
| Warranty type | Warranty |
|---|
| Type of the product | dimmer |
|---|
| History / Event log | depends on the Zigbee Bridge |
|---|
| Output circuits / gangs | 1 |
|---|
| Power supply | AC (110V-)(Live and Neutral) |
|---|
| Smartphone app | eWeLink, Tuya/SmartLife, SmartThings, Hue, depending on Zigbee bridge |
|---|
| Dimensions | 5,9 × 2,4 × 9,1 cm |
|---|
|
