6.95" Shelly Wall Display X2i WiFi/BLU control panel (black)

6.95" Shelly Wall Display X2i WiFi/BLU Control Panel (Black)

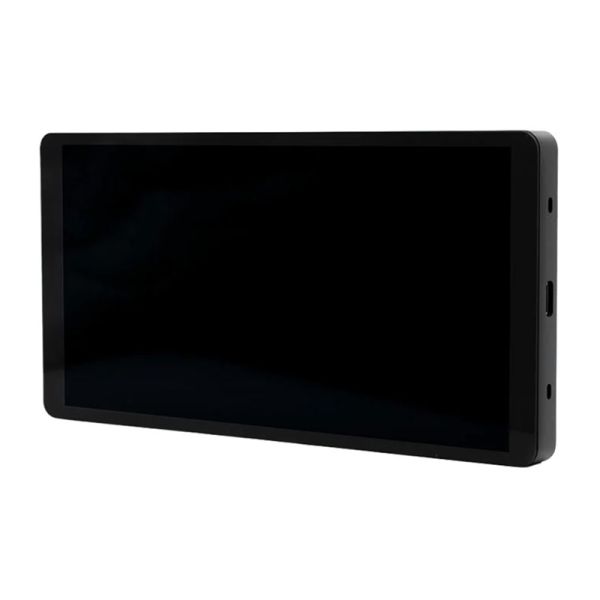

The Shelly Wall Display X2i is a modern control panel designed for smart home management. Equipped with a 6.95-inch color touchscreen and a fast quad-core processor, it allows smooth and intuitive control of lighting and appliances. The replaceable power base provides installation flexibility, while the built-in 5 A relay allows direct control of a single circuit. Wi-Fi 6 and Bluetooth 5.0 support ensures a stable connection, while the ability to power the device via USB-C and a standard 100-240 V~ network gives you complete installation freedom.

Advanced display and modern operation

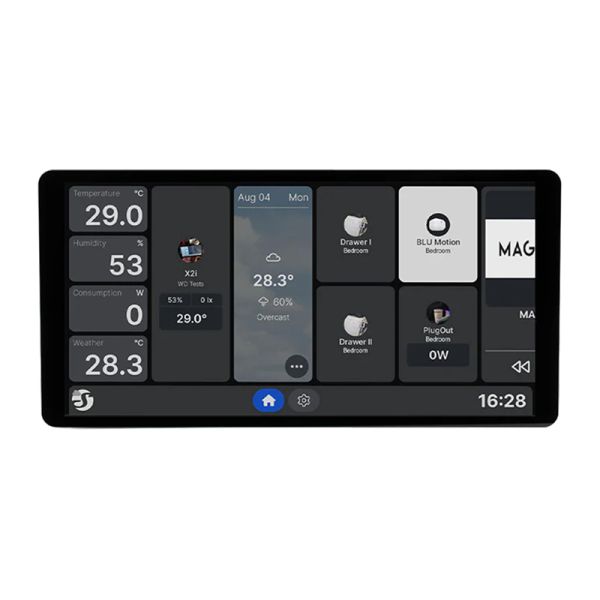

The device features a 1440x720 px touchscreen that supports five touch points, with the ability to switch between landscape and portrait orientation. The user interface is fully customizable, allowing you to adjust the appearance and layout of functions to your personal preferences. Thanks to the motion sensor, proximity sensor and light sensor, contactless operation is possible — the screen turns on when hand movement is detected, and the brightness automatically adjusts to the environment.

Audio functions and multimedia support

The built-in 0.8W speaker allows you to play notification sounds, alarms and music. The panel can also work with external Bluetooth speakers and Sonos sound systems, allowing you to extend your audio capabilities to different rooms. It is the perfect solution for those who value both convenience and aesthetics.

Energy consumption monitoring

The device offers the ability to monitor the energy consumption of other devices connected to your Shelly Smart Control account. This gives you an overview of current energy consumption and allows you to manage your home's energy more efficiently, identifying the devices that consume the most energy and making informed decisions about their use.

Home automation integration

The panel is designed for advanced automation — it supports MQTT, webhooks, RPC over HTTP, and BLE, and works with the Shelly Smart Control app, as well as Amazon Alexa, Google Home, Samsung SmartThings, and Home Assistant. This allows you to create schedules and scenes tailored to your household’s lifestyle.

Stable connectivity and communication

With dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) and Bluetooth 5.0, the Shelly Wall Display X2i provides fast pairing and reliable communication with other devices. The maximum communication range is up to 30 m indoors and 50 m outdoors, depending on local conditions.

Robust construction and flexible placement

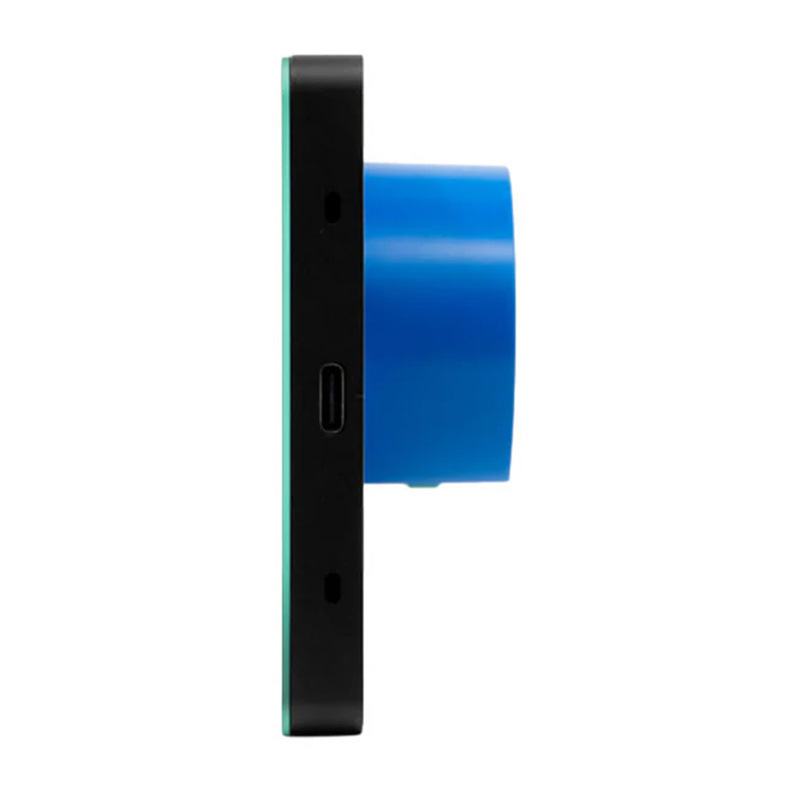

The device housing is made of plastic, aluminum and glass, ensuring durability and aesthetic appearance. The panel can be mounted in standard wall boxes, while its compact dimensions (87×178×36 mm with base) and low weight facilitate installation. The device operates in a wide temperature range from -20 °C to 40 °C and at humidity of 30 to 70%.

Performance and reliability

The Rockchip RK3326-S processor (4 Cortex-A35 cores 1.5 GHz), supported by 2 GB of RAM and 8 GB of internal memory, ensures smooth operation. The Android 11 system allows for quick response to any command. Support for up to 20 programs and integration with 20 webhooks means that the panel will meet the expectations of both private users and companies operating in commercial spaces, offices or apartment buildings.

In the box

• Shelly Wall Display X2i main board with integrated components (screen, speaker, microphone, sensors, etc.)
• Power supply base
• Support hinges x2
• User manual

Specifications:
