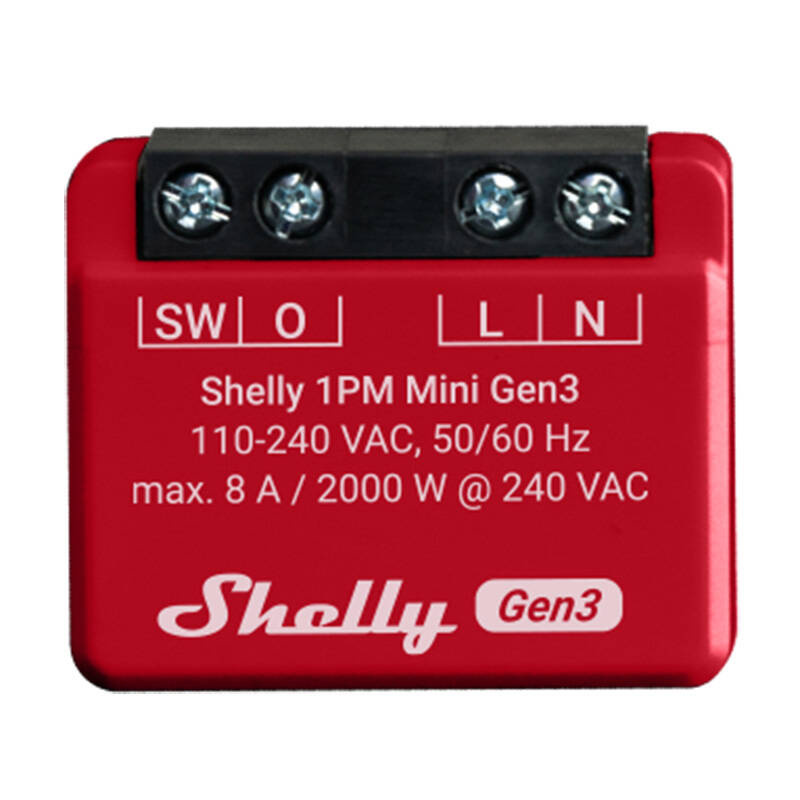

Shelly 1PM Mini Gen3
The Shelly 1PM Mini Gen3 controller is a small-sized smart intermediate switch that not only allows you to remotely control electrical appliances, but also measures energy consumption. It allows you to control and monitor your devices from your smartphone, tablet, computer or home automation system, wherever you are. It is an improved version of the Shelly Plus 1PM Mini with an advanced processor and larger memory.

Small size, maximum performance
Despite its small size, the Shelly 1PM Mini Gen3 offers top performance - all thanks to its advanced processor and increased memory. Its small size means you can easily install it in standard wall boxes, even in places with limited space. It is ideal for mounting behind sockets, light switches or other electrical devices.

Remote control
The Shelly 1PM Mini Gen3 allows you to control your electrical appliances remotely from anywhere, using your smartphone, tablet or computer. You no longer have to worry if you left a light on or forgot to turn off a fan. With the Shelly 1PM Mini Gen3, you can do it easily, even when you are away from home. In addition, the intermediate switch is compatible with home automation platforms such as Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can conveniently control your devices with simple voice commands.

Expand the reach of your network
With the Shelly 1PM Mini Gen3 you can extend the range of your Wi-Fi network for IoT devices. This device acts as a signal booster, taking the Wi-Fi signal and amplifying it to cover a wider area. This ensures that your IoT devices always stay connected.

Monitor energy consumption
Now you have full control over your home's energy consumption! By measuring your energy consumption, you can monitor in real time how much energy your connected devices are consuming. This not only allows you to understand which devices are the most energy-hungry, but also helps you make informed decisions about energy saving. This way, you can effectively manage your home's energy consumption and save money on your electricity bills at the same time!

A smart home on your terms
The controller offers the ability to create automations and operating programs that adapt to your daily routine. Would you like the lights to turn on at a specific time of day? Or would you like the fan to turn off automatically after an hour? All of this and more is possible with the Shelly 1PM Mini Gen3.

| Manufacturer | Shelly |
|---|
| Model | 1PM Mini Gen3 |
|---|
| Power supply | 110 - 240VAC |
|---|
| Relay | NO, 1 pole, micro contact |
|---|
| Power consumption | < 1.2W |
|---|
| External protection | Breaking characteristic B or C, max. 10A maximum rated current, min. 6kA breaking capacity, energy limitation class 3 |
|---|
| Maximum switching voltage | 240VAC |
|---|
| Maximum switching current | 8A/240VAC |
|---|
| Maximum switching power | 2000W |
|---|
| Power measurement | Yes |
|---|
| Surge protection | Yes |
|---|
| Current overload protection | Yes |
|---|
| Power overload protection | Yes |
|---|
| Internal temperature sensor | Yes |
|---|
| Wi-Fi wireless communication protocol | 802.11 b/g/n |
|---|
| Range | Up to 30m indoors and up to 50m outdoors |
|---|
| Bluetooth wireless protocol | 4.2 |
|---|
| Range | Up to 10m indoors and up to 30m outdoors |
|---|
| CMU | ESP-Shelly-C38F |
|---|
| Flash memory | 8MB |
|---|
| Programs | 20 |
|---|
| Webhooks (URL actions) | 20 with 5 URLs per action |
|---|
| Scenarios | Yes |
|---|
| MQTT | Yes |
|---|
| UDP | Yes |
|---|
| Advanced programming | Yes |
|---|
| KVS (Key-Value Storage) | Yes |
|---|
| Dimensions | 29 x 34 x 16 ±0.5mm |
|---|
| Weight | 18 ±1g |
|---|
| Conductor cross-section | 0.2 to 2.5mm² / 24 to 14 AWG (solid, stranded and bootlace terminated) |
|---|
| Length of exposed cable | 6 to 7mm / 0.24 to 0.28 inches |
|---|
| Place | In a wall box |
|---|
| Housing material | Plastic |
|---|
| Ambient operating temperature | -20°C to 40°C / -5°F to 105°F |
|---|
| Moisture | 30% to 70% RH |
|---|
| Maximum altitude | 2000m |
|---|
