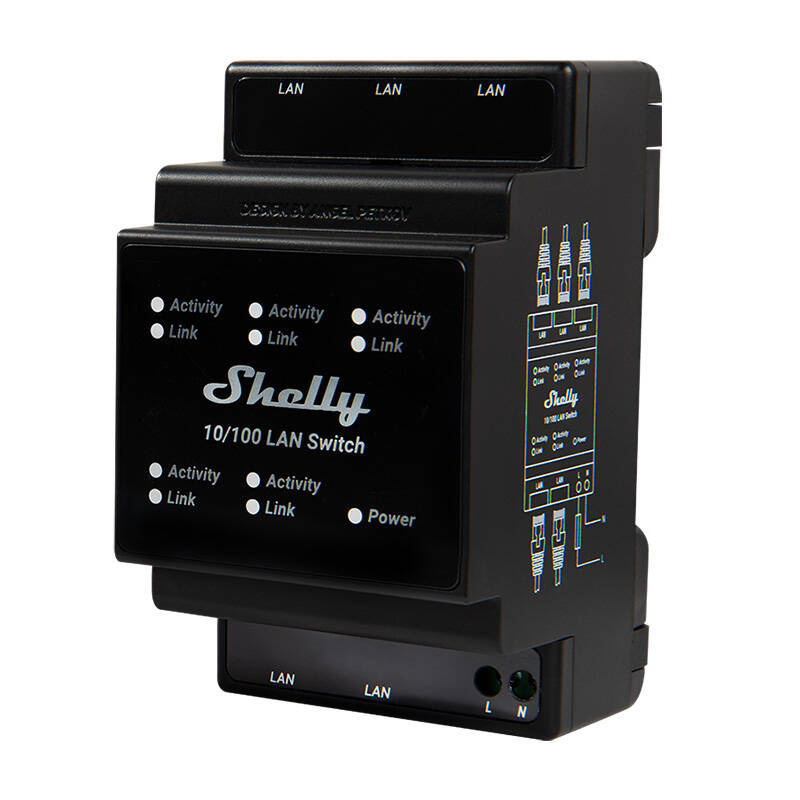

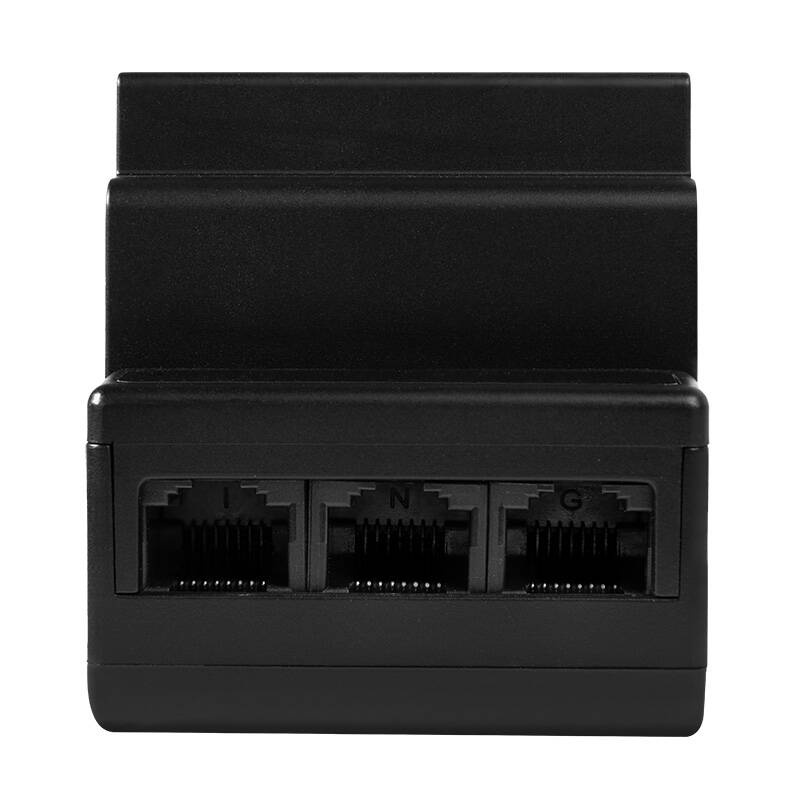

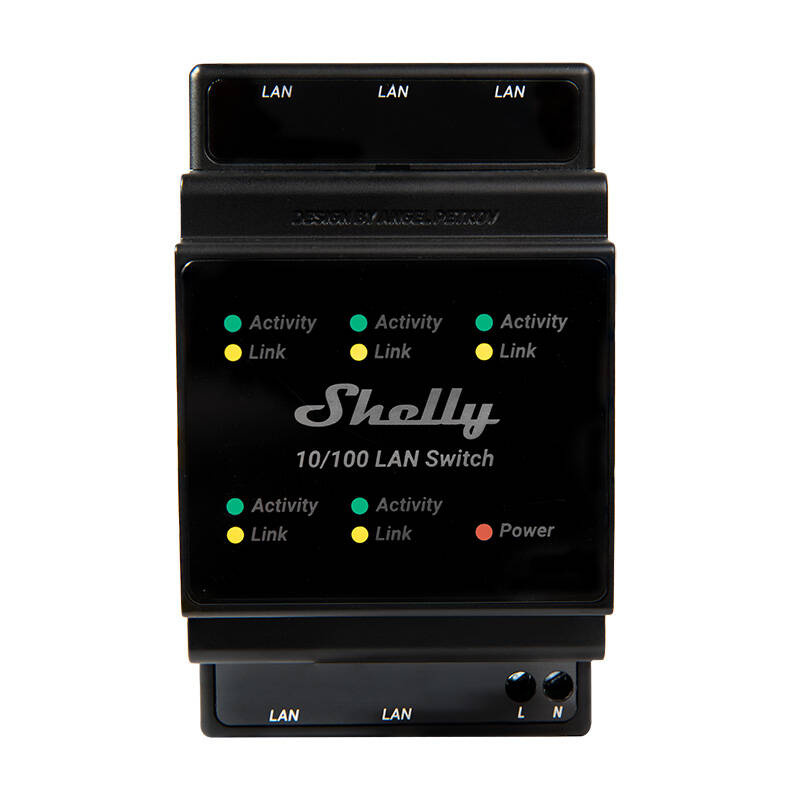

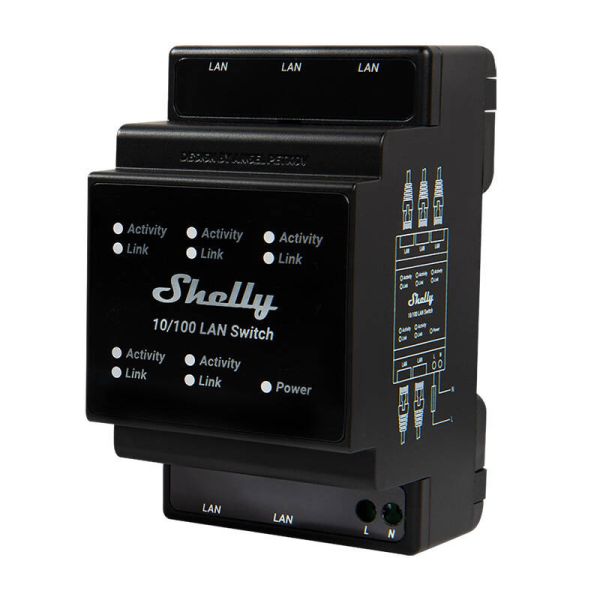

Ethernet switch with 5 RJ45 LAN ports
The Shelly LAN Ethernet Switch is designed to provide an efficient and stable network connection for a variety of devices. With five RJ45 ports, the device allows for seamless communication between multiple devices at the same time, which is crucial in modern homes and offices. Mounted on a DIN rail, the Shelly LAN Switch is the ideal solution for those who value order and efficiency in managing their network infrastructure.
Design and technical specifications
The switch has small dimensions (96 × 53 × 59mm) and a weight of 87g, which makes it easy to install in standard electrical boxes. The high-quality plastic housing ensures not only an elegant appearance, but also durability in typical operating conditions. The device is suitable for temperatures from -20°C to 40°C and relative humidity from 30% to 70%, allowing its use in a wide variety of environments.
Functionality and applications
Shelly LAN Switch offers not only the basic functionality of an Ethernet switch, but also advanced technical solutions to optimize and simplify the network infrastructure. The device provides reliable connectivity even under demanding conditions, which is crucial for maintaining the continuous operation of smart home systems, such as lighting and HVAC systems. In addition, with simple integration into photovoltaic systems, Shelly LAN Switch allows for effective monitoring and management of energy production and consumption.
Ease of installation
Designed to fit seamlessly into existing distribution box configurations, the Shelly LAN Switch eliminates the need for complex cabling while offering high connection stability and reliability. Working in conjunction with Shelly’s Pro series of devices, the switch simplifies installation and allows you to maintain an organized and stylish network system configuration. Thus, even without prior space planning for network devices, it is possible to quickly and efficiently expand the infrastructure without the need to reconnect cables.

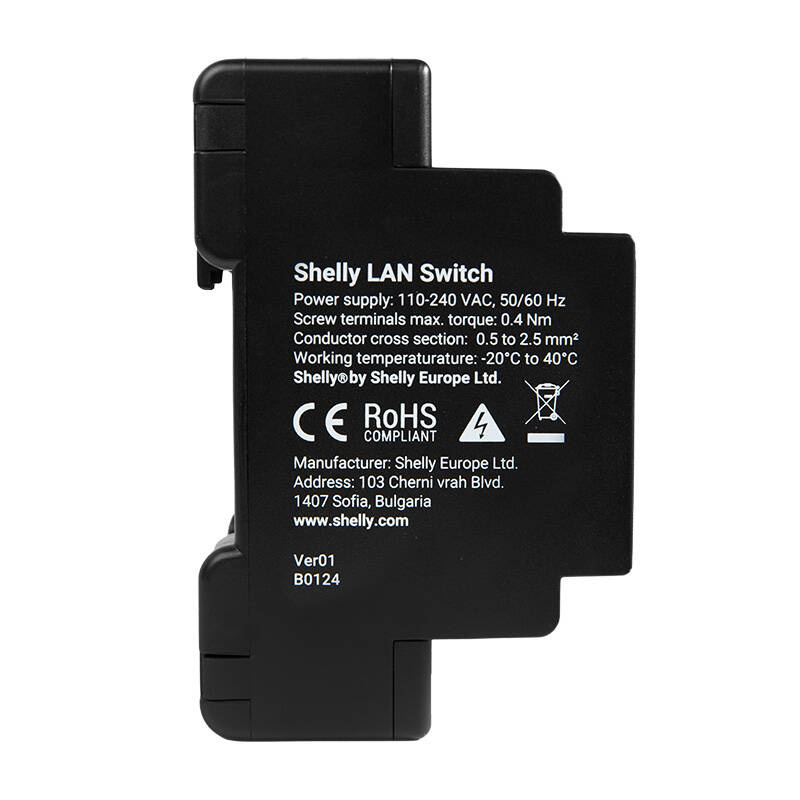

Specifications:
| Manufacturer | Shelly |
|---|
| Model | LAN Switch |
|---|
| Size | 96 × 53 × 59mm (H x W x D) |
|---|
| Weight | 87g |
|---|
| Maximum torque of screw terminals | 0.4Nm / 3.5lbs |
|---|
| Cable cross-section | 0.5 to 2.5mm² / 20 to 14AWG |
|---|
| Length of conductor without insulation | 6 to 7mm |
|---|
| Place | DIN rail |
|---|
| Housing material | Plastic |
|---|
| Coating color | Black |
|---|
| Ambient temperature during operation | -20°C to 40°C / -5°F to 105°F |
|---|
| Moisture | 30% to 70% relative humidity |
|---|
| Maximum altitude | 2000m |
|---|
| Power supply | 110-240V AC |
|---|
| Power consumption | < 1W |
|---|
| External protection | Trip characteristic B or C, max. 16A maximum rated current, min. 6kA breaking capacity, energy limitation class 3 |
|---|
