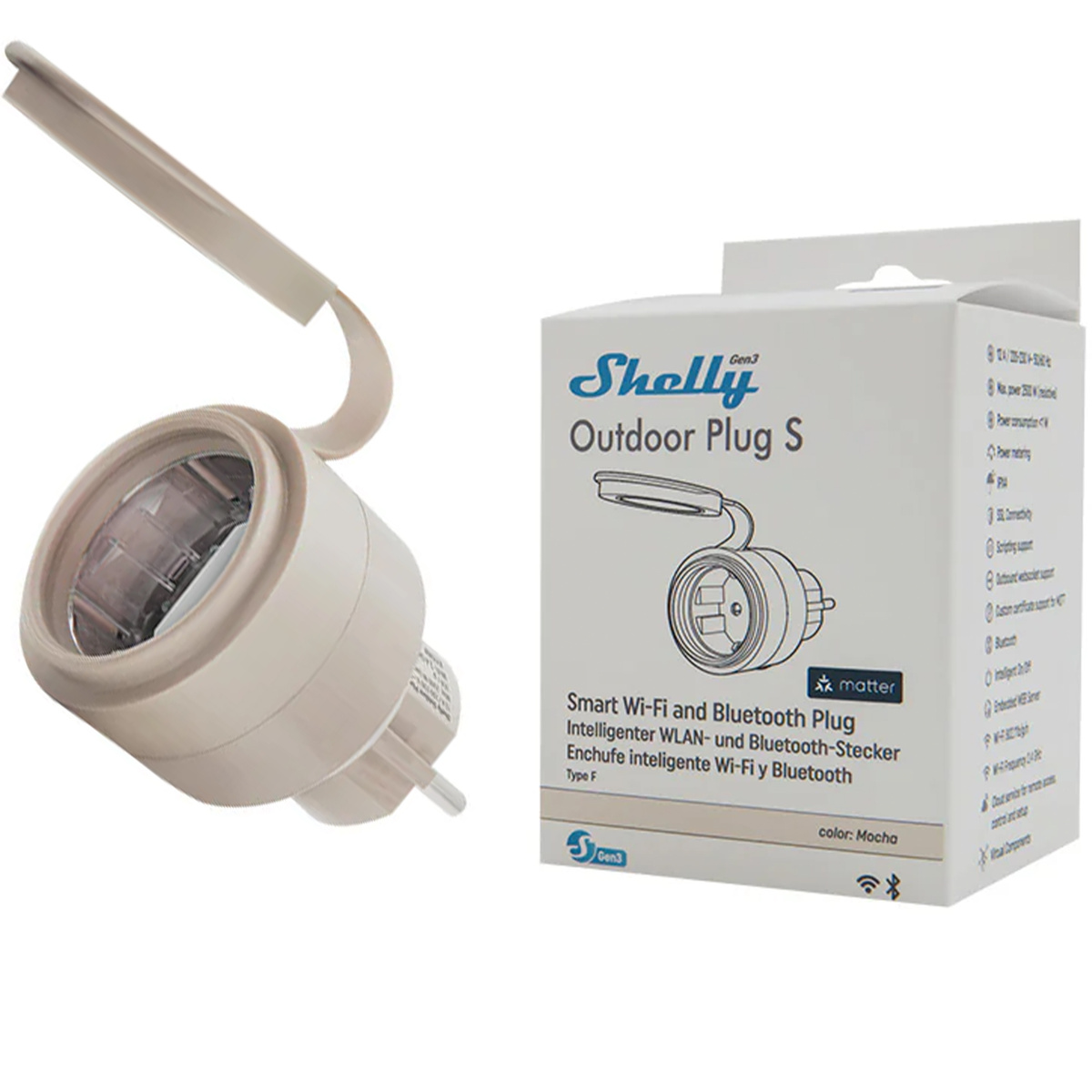

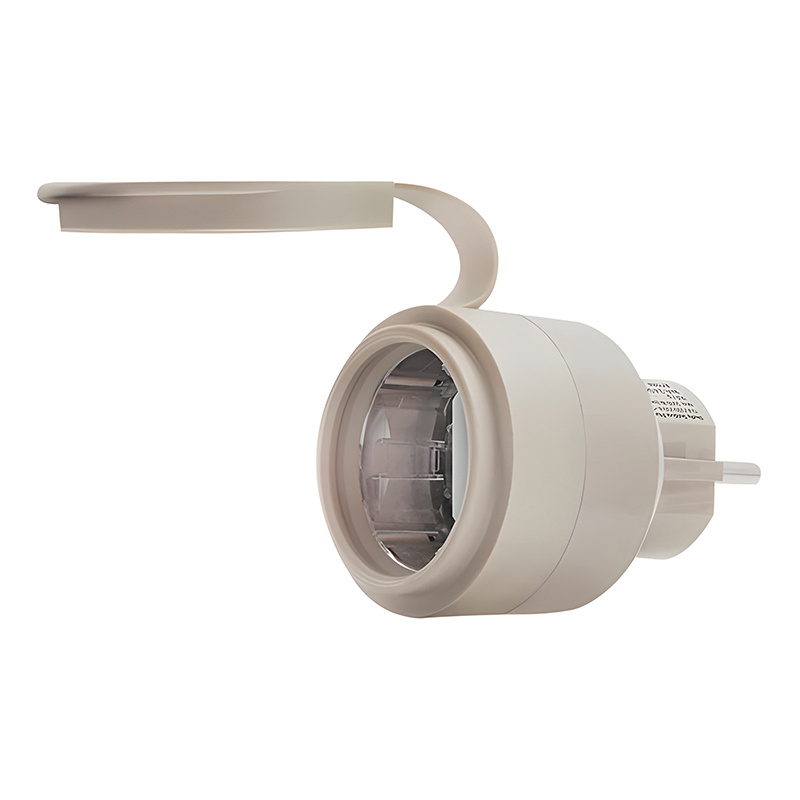

Shelly Plug S MTR Gen3 IP44 12A outdoor smart socket.
A modern home is not just about convenience, but also about full control of your devices - even outdoors. The Shelly Plug S MTR Gen3 is a smart outdoor socket that allows you to manage your lights, garden equipment and other electrical appliances wherever you are. IP44 water resistance, Apple HomeKit support and Matter certification make it an ideal choice for those who want to automate their home simply and effectively.

Smart control
Connect the Shelly Plug S MTR Gen3 directly to your Wi-Fi network and enjoy full control from your smartphone. With Matter support, you can integrate it with Apple HomeKit and control it with your voice using Siri, as well as manage your devices in the Apple Home app. With a simple touch of the screen, you can turn on the patio lights, start the heating or turn off the street lights.

Weatherproof - IP44
Rain, snow, dust? No problem. The Shelly Plug S MTR Gen3 has an IP44 rating, meaning it's splash and weather resistant. So you can use it on the patio, in the garden or by the pool without worry.

Full control of your accounts
The smart plug allows you to monitor your energy consumption in real time. You can see how much electricity each connected device is using, allowing you to optimize costs and avoid unnecessary energy waste. You will also receive notifications if equipment is running longer than it should, helping you avoid breakdowns and unnecessary expenses.

Automation at a new level
Shelly Plug S MTR Gen3 allows you to create smart scenarios tailored to your needs. Do you want your garden lights to turn on at dusk and off at dawn? Or do you plan to automatically turn on your patio heater on the cooler evenings? In the Shelly Smart Control app, you can set schedules, operating rules and associate the socket with other smart home devices.

More memory, more performance
The new generation of Shelly smart devices not only offers better functionality, but also more power. The built-in 8 MB memory and Shelly's proprietary chip guarantee stable operation and fast response to commands. You can also use the socket as a Wi-Fi signal amplifier and BLE gateway, increasing the range of your smart home.

Matter - the new standard for the smart home
The Shelly Plug S MTR Gen3 socket supports Matter - a universal communication standard for smart home devices. This means you can easily integrate it with other devices from different brands, without the need for additional apps or bridges. Even if your Wi-Fi network stops working, Matter devices will be able to communicate locally, giving you complete independence.

Specifications:
Manufacturer | Shelly |
---|
Model | OutdoorPlugSGen3 |
---|
Dimensions | 56x56x103 ±0.5mm |
---|
Weight | 85 ±1g |
---|
Compatible sockets | CEE 7/1, CEE 7/3 (type F / Schuko) or CEE 7/5 (type E) |
---|
Compatible plugs | CEE 7/2, CEE 7/4 (type F / Schuko), CEE 7/7, CEE 7/16 (type C) or CEE 7/17 |
---|

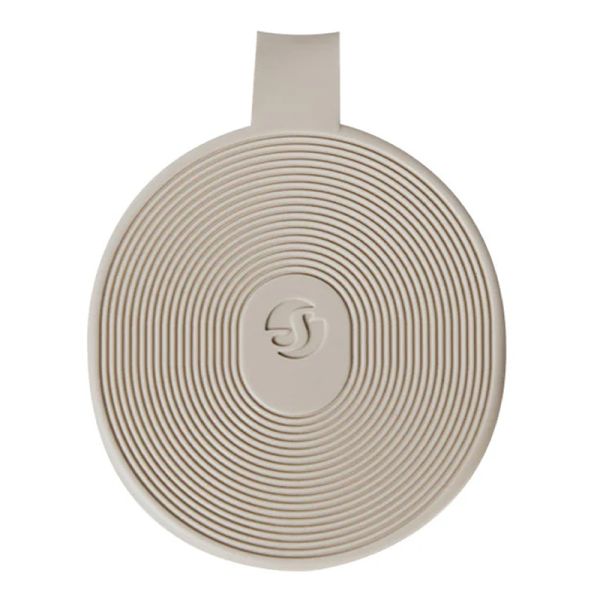

Housing material | Plastic with protective silicone rubber cover for the socket |
---|
Color | Mocha |
---|
Ambient temperature | -25°C to 51°C |
---|
Moisture | 15% to 85% RH |
---|
Maximum altitude | 2000 m |
---|
Glow wire temperature | 750°C |
---|
Degree of protection | IP44 |
---|
Forced cooling required | No |
---|
Power supply | 230 V~ 50/60 Hz |
---|
Power consumption | < 1W |
---|
Pulse resistance voltage | 2500V |
---|
Maximum switching voltage | 230 V~ |
---|
Maximum switching current | 12 A |
---|
Maximum output power | 2500 W (only with resistive load) |
---|
Number of switching cycles | 10000 |
---|
Hypertension category | II |
---|
Operation type | S1 |
---|
Switch type | One-way |
---|
Switch configuration | SPNO (single pole, normally open) |
---|
Circuit breaker type | Microswitch |
---|
Internal temperature sensor | Yes |
---|
Voltmeter (AC) | Yes |
---|
Ammeter (AC) | Yes |
---|
Power and energy meters | Yes |
---|
Wi-Fi Protocol | 802.11 b/g/n |
---|
RF band | 2401-2473 MHz |
---|
Maximum RF power | <10 dBm |
---|
Wi-Fi range | Up to 50 m outdoors, up to 30 m indoors (depending on local conditions) |
---|
Bluetooth protocol | 4.2 |
---|
RF band | 2400 - 2483.5 MHz |
---|
Maximum RF power | < 4 dBm |
---|
Range | Up to 30 m outdoors, up to 10 m indoors (depending on local conditions) |
---|
CPU | ESP-Shelly-C38F |
---|
Flash memory | 8MB |
---|
Firmware capabilities | Webhooks (shared URLs) 20 (with 5 URLs per webhook) |
---|
Scenario | Yes |
---|
MQTT | Yes |
---|
CoAP | No |
---|
