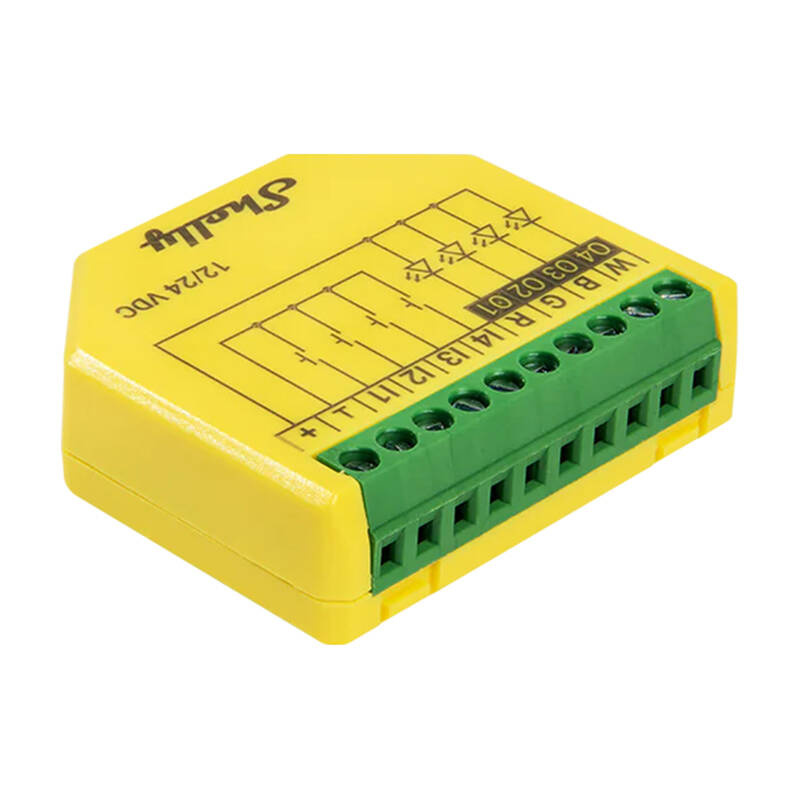

Shelly Plus RGBW PM LED strip controller
The Shelly Plus RGBW PM LED Strip Controller is the key to creating a unique atmosphere in your home or office. It supports 12V and 24V LED strips in White, RGB and RGBW modes, allowing you complete freedom of personalization. Discreet light for evening relaxation, dynamic lighting effects at a party or practical kitchen backlighting - you have it all at your fingertips. Without having to install additional hubs, you can start your smart lighting adventure as soon as you plug it into the socket.
Lighting effects that excite
With Shelly Plus RGBW PM, you can give your interior a unique touch. Create the right mood by dimming the light or choosing from 16 million colors. The device also offers unique lighting effects that bring any space to life - from subtle tonal transitions to dynamic color changes.
Smart programs and scenes
Customize your lighting to fit your lifestyle with smart schedules and scenes. The Shelly Plus RGBW PM controller lets you create personalized schedules that automatically adjust the light to your daily rhythm. Combine it with other Shelly devices to create a complete automation system that fully meets your needs!
Control in your hands
With Wi-Fi and Bluetooth support, controlling your lights is a breeze. All you need is the Shelly Smart Control app to monitor energy consumption, set night mode, or make changes in real time. The device works with the most popular platforms and protocols, as well as voice assistants like Alexa and Home Assistant. You can also integrate it with your favorite automation system to enjoy complete control over your lighting - wherever you are.
Safety and reliability in one
The device monitors energy consumption and has overload protection, which increases safety and helps control costs. The built-in ESP32 processor provides lightning-fast response to every change, so you can see every setting change immediately. Shelly Plus RGBW PM also works as a Wi-Fi repeater and BLE gateway, improving the range of your home network.
Specifications:
| Manufacturer | Shelly |
|---|
| Model | PlusRGBWPM |
|---|
| Dimensions | 42 x 37 x 12 ±0.5mm |
|---|
| Weight | 17g |
|---|
| Maximum tightening torque of screw terminals | 0.2 Nm |
|---|
| Cable cross-section | from 0.1 to 1 mm² |
|---|
| Stripped wire length | 6 mm |
|---|
| Place | In a wall box |
|---|
| Housing material | Plastic |
|---|
| Housing color | Yellow |
|---|
| Link color | Green |
|---|
| Ambient temperature | -20°C to 40°C |
|---|
| Moisture | 30% - 70>#/td### |
|---|
| Power supply | 12/24 VDC |
|---|
| Power consumption | < 1.2W |
|---|
| Maximum control voltage | 24 VDC |
|---|
| Maximum control current | 4 A per channel (10 A total) |
|---|
| PWM frequency | 22 kHz |
|---|
| Voltmeter | 0-24V |
|---|
| Voltmeter accuracy | ± 5>#/td### |
|---|
| Ammeter | 0-10A |
|---|
| Accuracy of the ammeter | ± 10>#/td### |
|---|
| Power and energy measurement | Yes |
|---|
| Detection limit without load | 0.5 VA per channel |
|---|
| Built-in temperature sensor | Yes |
|---|
| Wi-Fi range | Up to 30 m indoors, up to 50 m outdoors (depending on local conditions) |
|---|
| Bluetooth version | 4.2 |
|---|
| Bluetooth range | Up to 10 m indoors, up to 30 m outdoors (depending on local conditions) |
|---|
| Processor | ESP-Shelly C38F |
|---|
| Clock frequency | 160MHz |
|---|
| RAM | 400KB |
|---|
| Flash memory | 4MB |
|---|
| Programs | 20 |
|---|
| Webhooks (URL shares) | 20 (5 URLs per webhook) |
|---|
| Scenarios | Yes |
|---|
| MQTT | Yes |
|---|
