Shelly PRO 3EM 120A 2-Phase Energy Meter, WiFi/Bluetooth

Κωδικός Κατασκευαστή (MPN): Pro3EM

ΚΩΔΙΚΟΣ: EA0818

MANUFACTURERSHELLY MPNPro3EM

Shelly PRO 3EM 120A Wi-Fi Shelly Pro 3EM 120A is a professional, three-phase energy meter that can be mounted on a DIN rail. The device provides information on the accumulated energy with an accuracy of 1% and the instantaneous voltage, current and power per phase in real time. It stores...

€141⁸⁶

Χωρίς ΦΠΑ: €114.40

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Shelly PRO 3EM 120A Wi-Fi

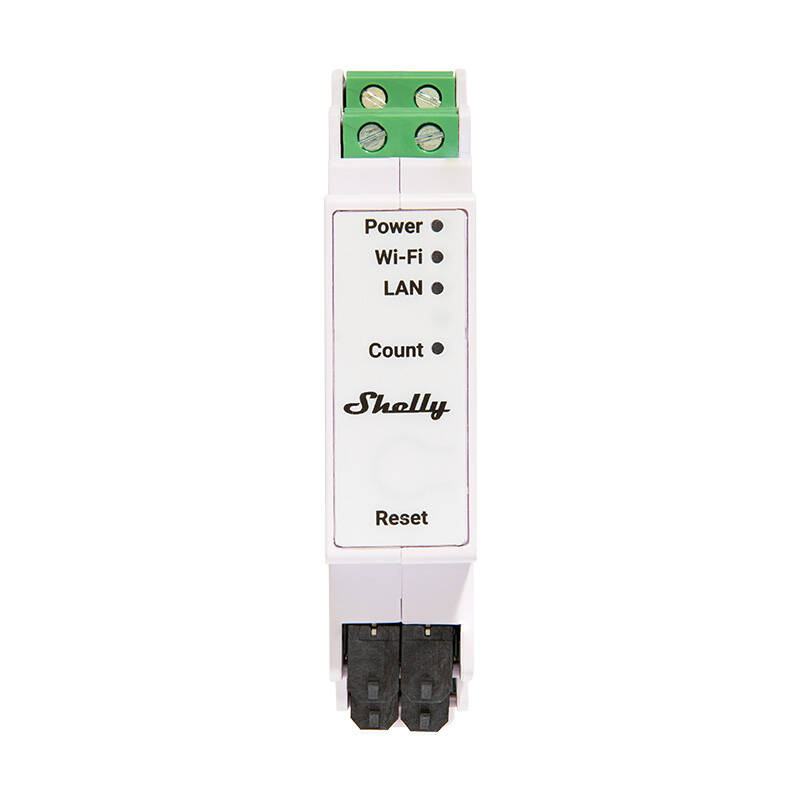

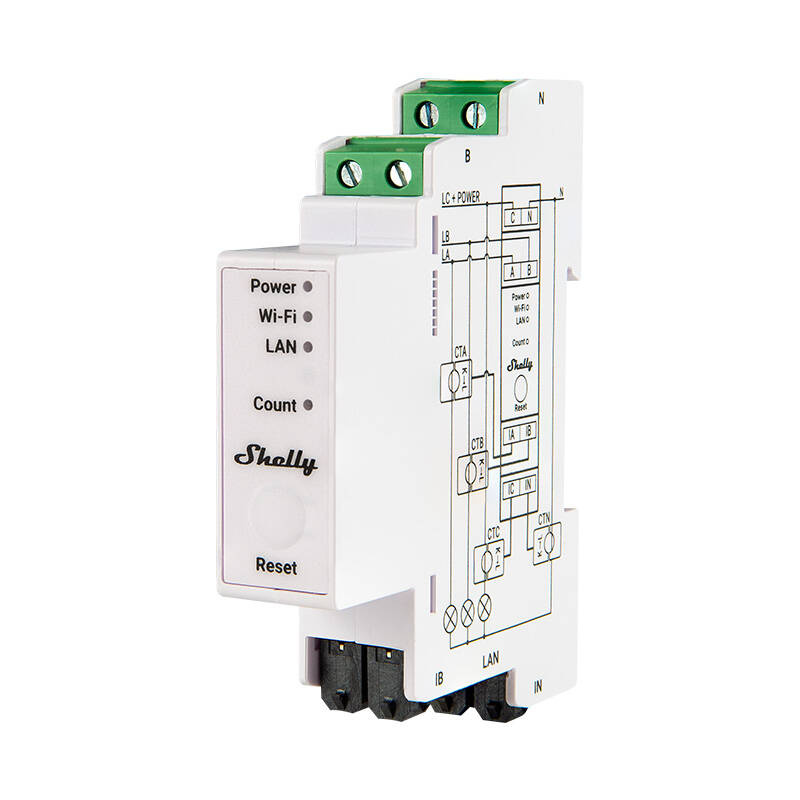

Shelly Pro 3EM 120A is a professional, three-phase energy meter that can be mounted on a DIN rail. The device provides information on the accumulated energy with an accuracy of 1% and the instantaneous voltage, current and power per phase in real time. It stores data for the last 60 days with a resolution of one minute for each phase to provide accurate analysis. It can operate autonomously on a local LAN and/or Wi-Fi network or operate via a cloud-based home automation service via the MQTT, HTTP and WebSocket protocols. In addition, with the scenario function, it provides the ability to create advanced scenarios and offers extensive monitoring options.

Specifications:

Manufacturer	Shelly
Model	SPEM-003CEBEU120
AC supply voltage	100 - 260V, 50/60Hz
Power consumption	< 3W
Internal temperature sensor	Yes
Voltmeters (RMS for each phase)	100 - 260V
Voltmeter accuracy	±1>#/td###
Ammeters (RMS with current transducers for each phase and neutral)	0 - 120A
Compatible current transformer (CT)	CT 120A
Ammeter accuracy	±1% (2 - 120A), ±2% (1 - 2A), ±5% (0 - 1A)
Active and apparent power and energy meters	Active and apparent power, active and apparent energy, power factor, fundamental energy and reactive fundamental energy
Channel-to-channel calibration with minimal load	500W per channel
No-load threshold	30VA per channel
Measurement data storage:	With 1 minute data analysis
Wi-Fi protocol	802.11 b/g/n
Wi-Fi range	Up to 30m indoors and 50m outdoors
Bluetooth protocol	4.2
Bluetooth range	Up to 10m indoors and 30m outdoors
CPU	ESP32-D0WDQ6
Flash memory	16MB
Dimensions	94 x 19 x 69 ±0.5mm
Weight	62 ±1g
Place	DIN rail
Housing material	Plastic
Ambient temperature	-20°C to +40°C
Moisture	30% to 70% RH
Maximum altitude	2000m
