Shelly PRO 3EM 400A 2-Phase Energy Meter, WiFi/Bluetooth

Κωδικός Κατασκευαστή (MPN): Pro3EM-400

ΚΩΔΙΚΟΣ: EA0849

MANUFACTURERSHELLY MPNPro3EM-400

2-channel electricity consumption meter Shelly PRO 3EM 400A WiFi Shelly Pro 3EM 400A is a professional, three-phase electricity consumption meter, which can be installed on a DIN rail. The device reports the accumulated energy with an accuracy of 1% and in real time the voltage, current and...

€255³⁴

Χωρίς ΦΠΑ: €205.92

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

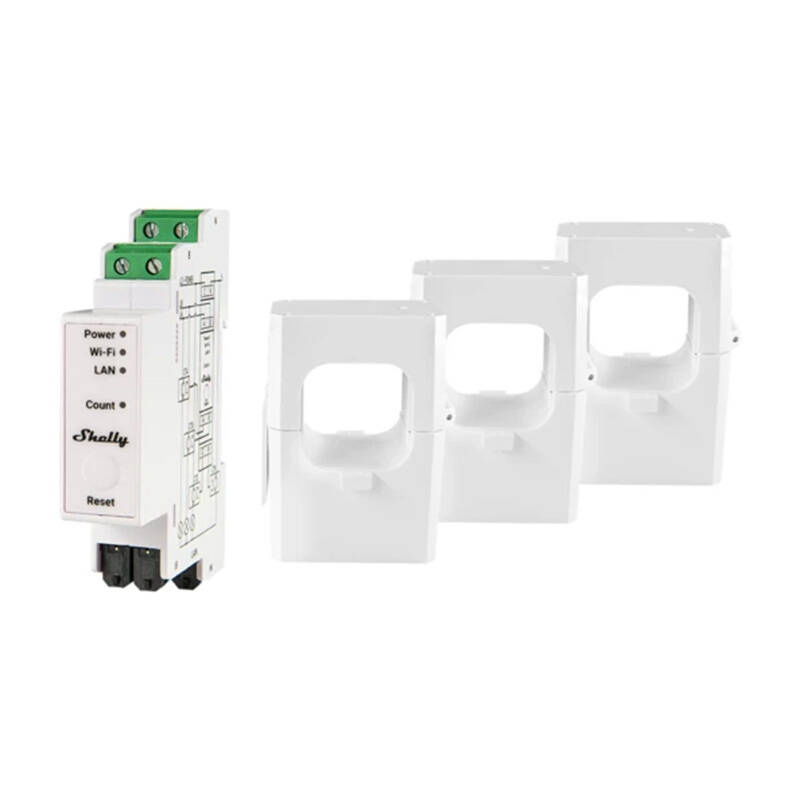

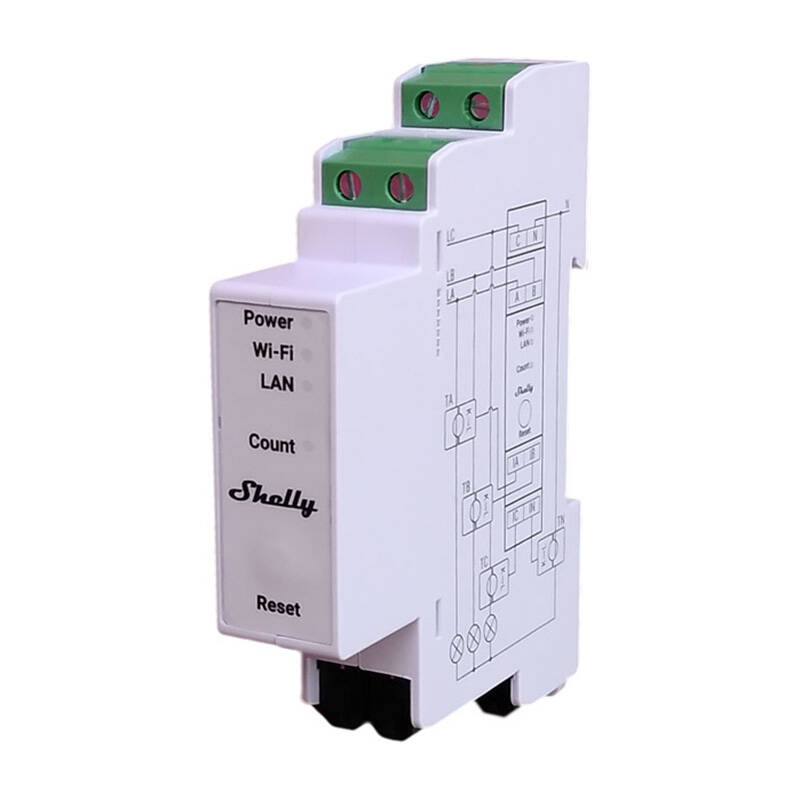

2-channel electricity consumption meter Shelly PRO 3EM 400A WiFi

Shelly Pro 3EM 400A is a professional, three-phase electricity consumption meter, which can be installed on a DIN rail. The device reports the accumulated energy with an accuracy of 1% and in real time the voltage, current and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, allowing for precise analysis. Finally, it offers advanced scenario creation capabilities and extensive monitoring options.

Specifications:

Manufacturer	Shelly
Model	SPEM-003CEBEU400
AC power supply voltage	110 - 240V, 50/60Hz
Power consumption	< 3W
Internal temperature sensor	Yes
Voltage meters (RMS for each phase)	100 - 260V
Voltmeter accuracy	±1>#/td###
Ammeters (RMS via CT for each phase and neutral)	0 - 400A
Compatible current transformer (CT) ratings	CT-400A
Ammeter accuracy	±1% (5 - 400A), ±2% (0 - 5A)
Power and energy meters	Active and apparent power, active and apparent energy, power factor, fundamental energy and fundamental reactive energy
Channel-to-channel calibration at minimum load	5000W per channel
No-load limit	30VA per channel
Saving measurement data	At least 60 days with 1 minute data analysis
Data export	CSV format for stored PQ values, JSON export via RPC
Wi-Fi protocol	802.11b/g/n
Wi-Fi range	Up to 30m indoors and 50m outdoors
Bluetooth protocol	4.2
Bluetooth range	Up to 10m indoors and 30m outdoors
CPU	ESP32-D0WDQ6
Flash memory	16MB
Ambient temperature	-20°C to +40°C
Moisture	30% to 70% RH
Maximum altitude	2000m
Dimensions	94 x 19 x 69 ±0.5mm
Weight	62 ±1g
Place	DIN rail
Housing material	Plastic
