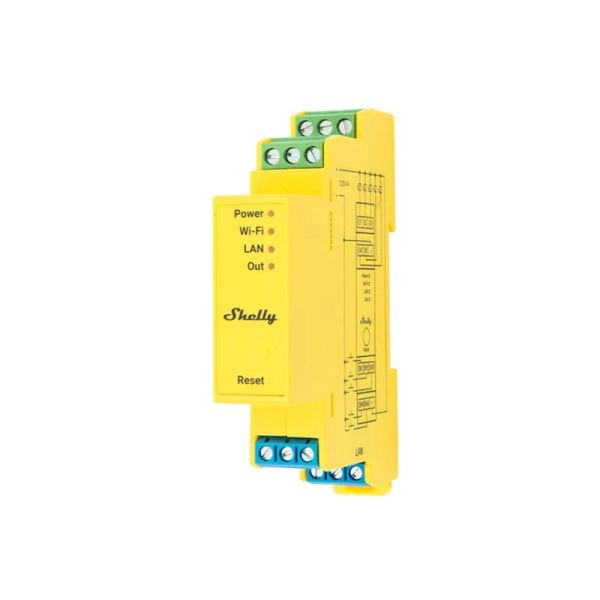

The Shelly Pro RGBWW PM is a professional, DIN-rail mountable, five-channel LED controller that offers an ideal solution for independently controlling RGB, RGBW, CCT, or even five separate single-color LED strips or lighting circuits powered by 12V–24V DC. The built-in power metering function enables real-time voltage, current, and power monitoring, allowing for not only visually appealing but also energy-efficient lighting solutions.
The device can operate in four different profiles: RGB+CCT (default), CCT x2, RGB+2x Light, and Light x5. This makes it flexibly applicable to various lighting needs, whether for ambient lighting, functional illumination, or complex lighting system control. The Shelly Pro RGBWW PM supports control via Wi-Fi, LAN, and Bluetooth connections, and is compatible with many smart home platforms such as Home Assistant, Amazon Alexa, and Google Home. With the built-in web interface and the Shelly Smart Control app, it is easy to configure and control, even remotely.
The Shelly PRO version is mountable on a DIN rail inside an electrical cabinet, making it ideal for star-wired or cabinet-installed LED control purposes. Shelly Pro devices support not only Wi-Fi connectivity but also feature an Ethernet port, enabling use as a wired building automation system.
About the Shelly brand
Shelly is a brand of the Bulgarian company Allterco Robotics, known worldwide for its innovative, reliable, and easily integrable smart home devices. Their product range includes relays, sensors, lighting controllers, and energy monitoring solutions that cater to both DIY users and professional installers. Shelly devices use open protocols, making them easy to integrate with various smart home systems.
Product Features:
- Installation: DIN-rail mountable – Easy installation in electrical cabinets
- Supported Modes:
- RGB and CCT (default profile)
- CCT x 2
- RGB and 2 lighting channels
- 5 separate single-color lighting channels
- Functions and Connectivity
- Power consumption measurement
- Bluetooth – Short-range remote control via Shelly Bluetooth devices
- BLE Gateway – Forwards data from connected BLE devices via Wi-Fi or Ethernet
- Wi-Fi range extender – Extends Wi-Fi signal range
- Automation and Control
- Scripting – Create automation scripts
- Basic schedules – Weekly routines
- Advanced schedules – Annual routines
- Automatic on/off with timer
- Local actions – Within Wi-Fi network
- Webhooks – Event-based communication
- No need for a central controller
- Additional Features
- Activity log
- KVS – Key-value storage
- Security – Overcurrent and overvoltage protection
- Dynamic components
- Independent control in 5-channel mode
- Additional Control Options
- Night mode – Defined brightness level
- Default values: 50% brightness, RGB (255,255,255), 4600K
- Input Modes
- Switch/Button/Analog input – 10kΩ potentiometer
- CCT x 2 profile:
- Input(0) and Input(1) control CCT(0)
- Input(2) and Input(3) control CCT(1)
- Input(4) is disconnected
- RGB and CCT profile:
- Input(0) and Input(1) control RGB
- Input(2) and Input(3) control CCT
- Input(4) is disconnected
- RGB and Light x 2 profile:
- Input(0) controls RGB
- Input(2) controls Light(0)
- Input(3) controls Light(1)
- Input(1) and Input(4) are disconnected
- Light x 5 profile:
- Each Input(x) controls the corresponding Light(x)
- Brightness and Transitions
- Single-button brightness control
- Dual-button control
- Transition time
- Minimum brightness at startup
- Min./Max. brightness
- Min./Max. color temperature
- Button fade speed
- Button presets
Smart Home Protocols and Platform Compatibility
- Supported protocols: Wi-Fi, Ethernet, Bluetooth 4.2
- Local control: via Bluetooth connection
- Built-in web server: local SSID broadcasting and admin interface
- Native platform: Shelly Smart Control app
- Integration options: MQTT, REST API, Webhook
- Compatible platforms: Home Assistant, NodeRED, Alexa, Google Home, SmartThings
- Scripting support: mJS scripts (local execution)
- Voice control: Amazon Alexa, Google Assistant
Smart Features
- Real-time status query
- Power and energy consumption measurement
- Timers and automations
- Night mode
- Webhooks and scripting
- Local and cloud-based operation
- Multiple profile support
- Configurable inputs
Electrical Specifications
- Operating voltage: 12V–24V DC
- Number of outputs: 5 independent channels
- Rated output voltage: 12V–24V DC
- Rated output current: 16A total, 6A per channel
- Consumption monitoring: Yes
- Number of inputs: 5 (configurable)
Other Specifications
- Dimensions: 94 x 19 x 69 mm
- Mounting: DIN rail
- Housing material: Plastic
- Color: Yellow
- Operating temperature: -20°C to +40°C
- Humidity: 30% – 70% RH
- Maximum installation altitude: 2000 m
Additional information
| General |
|---|
| Brand | Shelly |
|---|
| Factory SKU ID | 3800235268216 |
|---|
|
| Electricity properties |
|---|
| 2-way or 3-way switching | 2-way / 3-way / SPDT switches are supported for on/off, multiple momentary / push button switches can be connected to it |
|---|
|
| Smart home protocols |
|---|
| Bluetooth | Bluetooth pairing with phone, also Bluetooth remote controllers can be paired with it to remote control it, also Bluetooth hub features makes it possible to control other non-Bluetooth Shelly devices |
|---|
|
| Remote control, smart control |
|---|
| Cloud mode | yes, it could work from the Shelly cloud (configurable) |
|---|
|
| Lighting parameters |
|---|
| Colour temperature | default: 2700K – 6500K, configurable to any range in between 1000K and 10000K |
|---|
|
| More features |
|---|
| Bundle | No |
|---|
| Colour | yellow |
|---|
| Conductor cross section | 2.5 mm² (green connector), 1.5 mm² (blue connectors) |
|---|
| Device power supply | 12V DC / 24V DC |
|---|
| Dimmer feature | yes |
|---|
| DIN rail compatible | yes |
|---|
| Direct local remote control | yes, with Bluetooth remote controllers |
|---|
| EAN code | 3800235268216 |
|---|
| Ethernet (RJ-45) | yes |
|---|
| External switch supported | yes, 5 switch inputs |
|---|
| History / Event log | yes: on/off history in the app (the last 50 event for every Shelly account) |
|---|
| LAN mode | yes, works just in the local area network mode, with full functionality (adjustable) |
|---|
| MQTT support | yes |
|---|
| Night mode | yes |
|---|
| Notification functions | send email, Shelly app notification |
|---|
| Operating humidity range | 30% – 70% RH |
|---|
| Operating temperature range | -20°C – 40°C |
|---|
| Overload protection | yes |
|---|
| Power consumption metering | yes |
|---|
| Rated current (output) | 16A (total), 6A (per channel) |
|---|
| Rated voltage (output) | 12V / 24V DC |
|---|
| REST API support | yes |
|---|
| RF transmitter / receiver | no |
|---|
| Schedulers, timers | up to 20 scheduled on/off, stored on the device |
|---|
| Size | 94 x 19 x 69mm |
|---|
| Supported protocols | Bluetooth, Ethernet / LAN, Wi-Fi |
|---|
| Thread | no |
|---|
| Type of the product | LED / RGB(W) controller |
|---|
| Warranty extension by factory | Shelly Extended Warranty (5 years) |
|---|
| Web admin interface | yes, almost the same functionality as the app |
|---|
| Wi-Fi | yes |
|---|
| Zigbee | no |
|---|
| Z-Wave | no |
|---|
| Output circuits / gangs | 5 (RGBCW channels) |
|---|
| Power supply | DC (below 60V) |
|---|
| Smartphone app | free app (Shelly Smart Control) (iOS, Android) |
|---|
| Dimensions | 9,4 × 1,9 × 6,9 cm |
|---|
|
