Shelly Qubino Wave Shutter Controller, Z-Wave

QubinoWaveShutter
EA0946
MANUFACTURERSHELLY MPNQubinoWaveShutter
Shelly Qubino Wave Shutter Controller The Shelly Qubino Wave 2PM is the ideal solution for those who want full control of roller shutters and other devices powered by bidirectional AC motors. With advanced features, you will save energy, gain comfort and easily integrate it into your smart...
2934
Χωρίς ΦΠΑ: 23.66
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

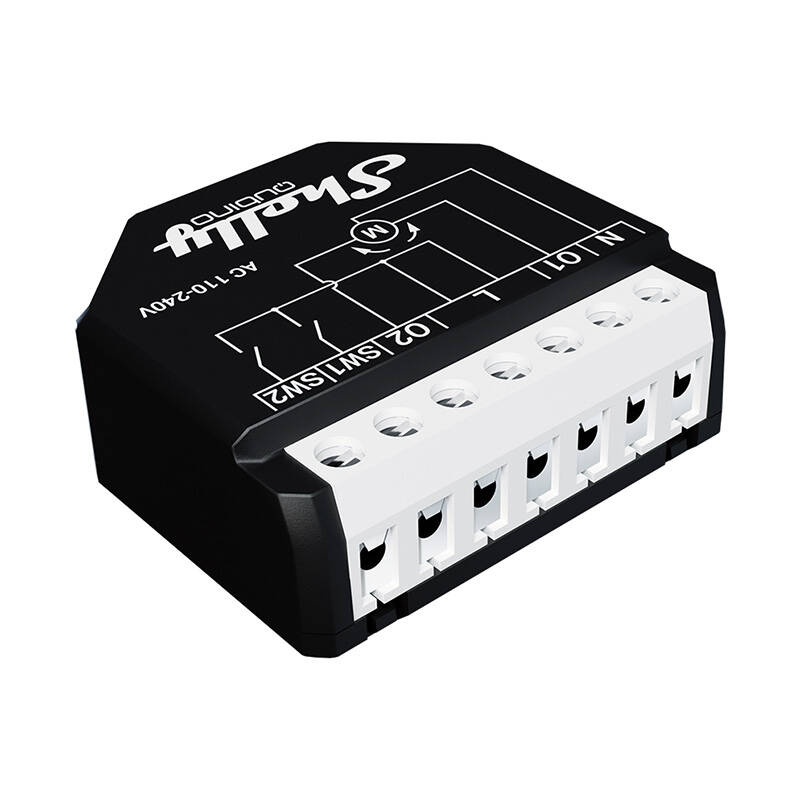

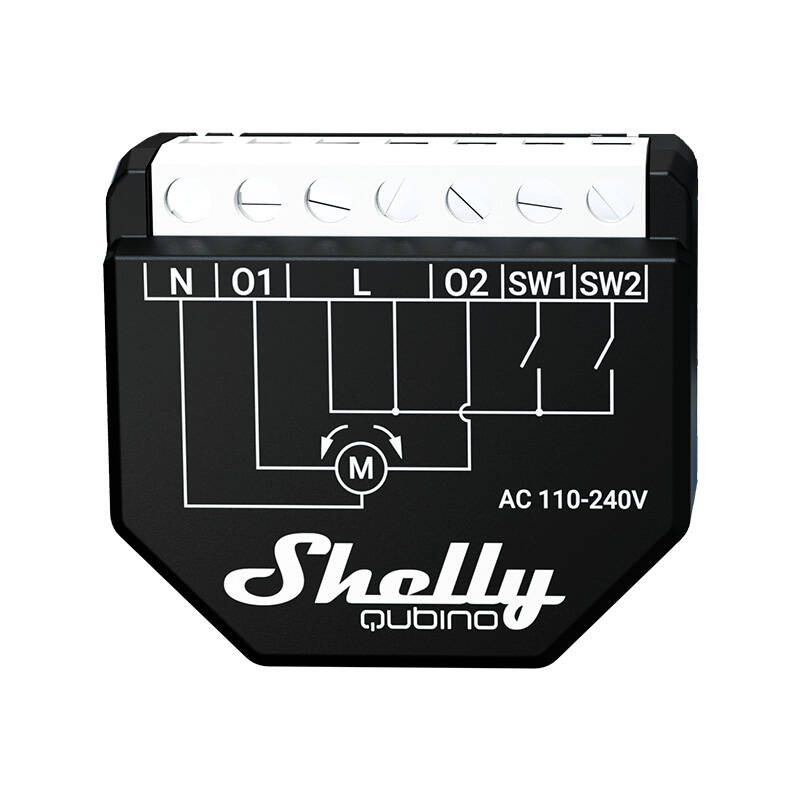

Shelly Qubino Wave Shutter Controller

The Shelly Qubino Wave 2PM is the ideal solution for those who want full control of roller shutters and other devices powered by bidirectional AC motors. With advanced features, you will save energy, gain comfort and easily integrate it into your smart home ecosystem. See what the Shelly Qubino Wave 2PM controller can offer you!

Shelly/QubinoWaveShutter/1

Opening and closing the blinds according to your schedule

Do you want your home to be in sync with your daily routine? With Shelly, this is possible! With this intermediate switch, your roller shutters can open and close at the times you choose, creating the ideal atmosphere to start and end your day. In addition, you can use the position control to determine the correct position of the roller shutters and adjust the light level according to your preferences. However, you can still control them manually, using a switch or button.

Shelly/QubinoWaveShutter/6

Maximum comfort

Nowadays, many of us work from home, but direct sunlight falling on the computer screen can be annoying. With the Shelly intermediate switch, you can adjust the position of the blinds using an app - no more having to get up from your desk and interrupt your work!

Shelly/QubinoWaveShutter/8

Z-Wave compatibility

This controller is compatible with certified Z-Wave gateways and over 4,000 other devices, allowing for easy integration into your existing smart home infrastructure. This allows you to remotely control and monitor your devices, giving you complete control over the energy each one uses.

Shelly/QubinoWaveShutter/5

Home security

Going on vacation and worried that your home is not safe? Strengthen its security and synchronize the Shelly controller with other devices to create smart scenes. During your absence, the roller shutters will automatically go up and down at specific times and the lights will turn on every evening. This will give the impression that someone is home, deterring potential intruders.

Shelly/QubinoWaveShutter/7

Many possibilities

When you create connections between the Shelly controller and other Z-Wave devices, they will be able to communicate directly without a gateway. For example, you can connect the Wave Shutter to a Z-Wave wind sensor or weather station. This way, when strong wind is detected, the awnings will automatically close to prevent damage. Note: programming smart schedules and smart scenes requires a gateway.

Shelly/QubinoWaveShutter/2


Specifications:

ManufacturerShelly
ModelQubino Wave Shutter
Size37 x 42 x 16mm ± 0.5mm (H x W x D)
Weight29g
PlaceWall bracket
Maximum torque of screw terminals0.4m
Cable cross-section0.5 to 1.5mm²
Cable length without insulation5 to 6m
Housing materialPlastic
ColorBlack
Ambient temperature-20°C to 40°C / -5°F to 105°F
Moisture30% to 70% relative humidity
Maximum altitude2000m
Power supply110-240V AC ±10>#/td###
Power consumption< 0.3W
Power measurementYes
Maximum AC switching voltage240V
Maximum AC switching current10A per channel
Z-Wave frequency bands868.4 MHz- 865.2 MHz- 869.0 MHz- 921.4 MHz- 908.4 MHz- 916 MHz- 919.8 MHz- 922.5 MHz- 919.7-921.7-923.7 MHz- 868.1 MHz- 920.9 MHz
Z-Wave RepeaterYes
Z-Wave RangeUp to 40m indoors (depending on local conditions)
Maximum transmitted RF power in the frequency bands< 25mW
ProcessorZ-Wave S800
Overcurrent protectionYes
Overheating protectionYes

MANUFACTURER
SHELLY
MPN
QubinoWaveShutter
EAN
3800235269008
