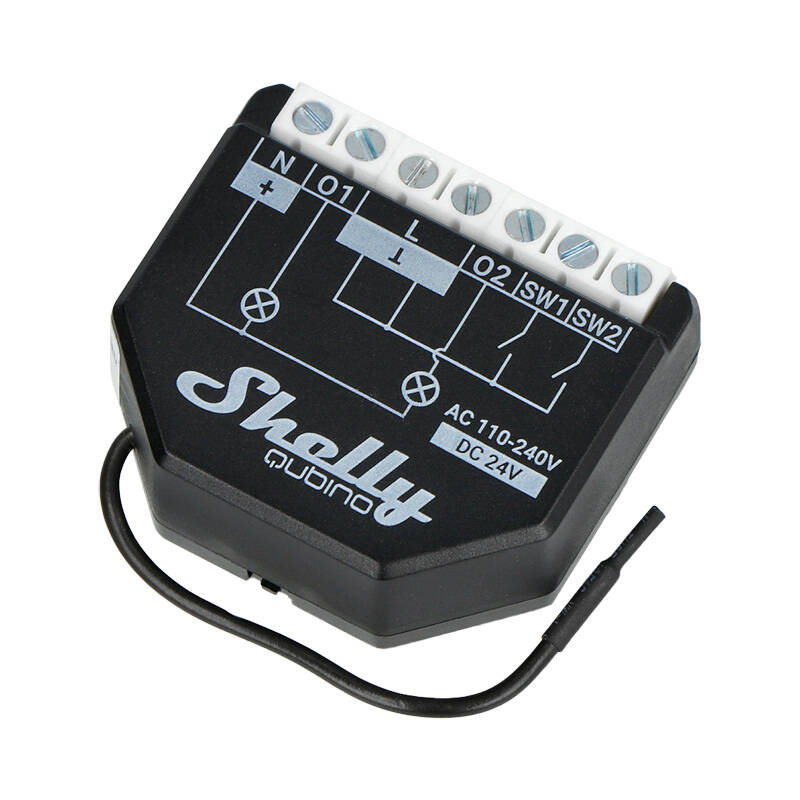

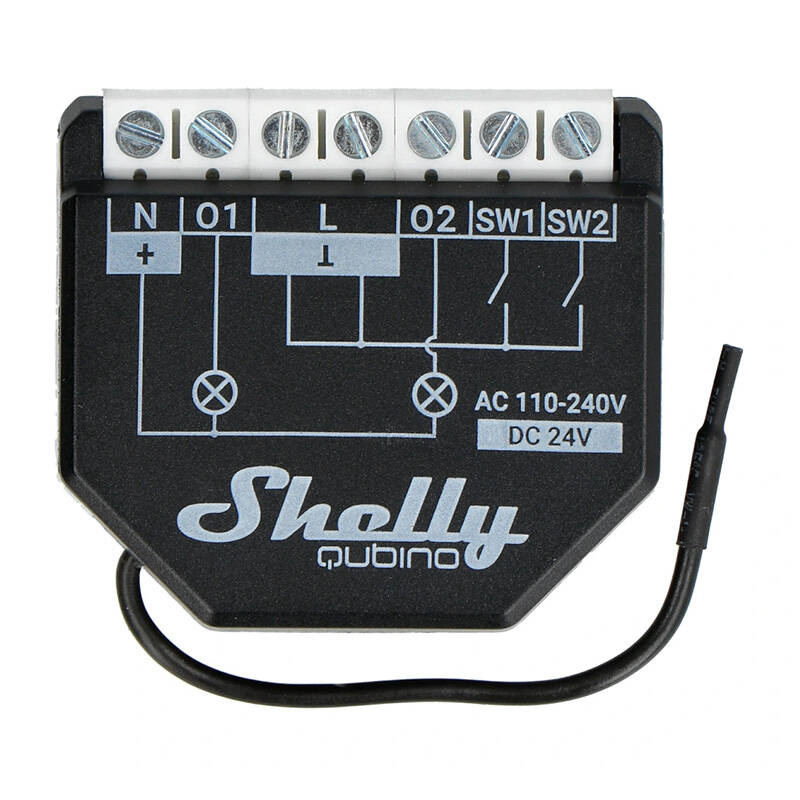

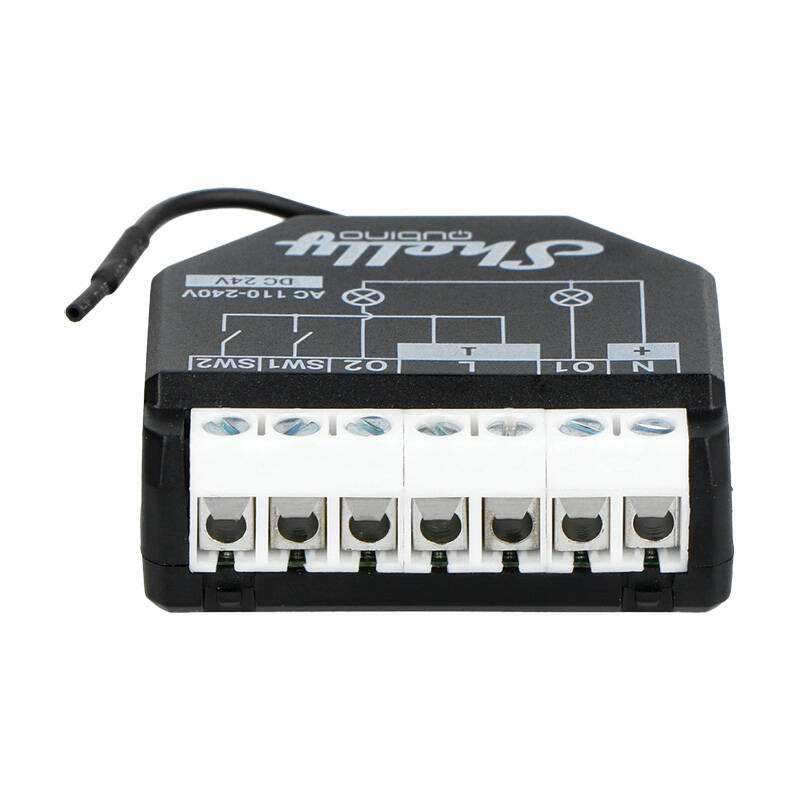

Shelly Qubino Wave2PM
The Shelly Qubino Wave 2PM Controller is the ideal solution for those who want to increase the comfort and energy efficiency of their home. It allows you to save energy, control your electrical appliances and enjoy the comfort of a smart home. Open the door to the future today and invest in the Shelly Qubino Wave 2PM Controller!

Z-Wave gateway compatibility
The Shelly Qubino Wave 2PM is a state-of-the-art solution that allows you to intelligently control various electrical devices in your home. This controller is compatible with certified Z-Wave gateways and over 4,000 other devices, allowing for easy integration into your existing smart home infrastructure. This allows you to control and monitor your devices remotely, giving you full control over the energy each device uses.

Full control
One of the main advantages of this controller is its ability to remotely control two lights or other electrical devices. This means you can control different electrical devices independently of each other, giving you more flexibility in managing your energy. You can use a manual switch, an app, a home automation system, or voice control to control them.

Energy efficiency
The controller stands out for its low power consumption, only 0.3 Watt. This is important, because it minimizes the additional costs associated with electricity consumption, which benefits your budget. In addition, the Shelly Qubino Wave 2PM controller allows you to accurately measure the power on each channel and monitor the total energy consumption. With this feature, you can monitor exactly how much energy is used by each device, allowing you to effectively manage your energy costs.

Easy configuration and simple installation
Thanks to the SmartStart feature, configuring this controller is intuitive and simple. You can easily install and configure it, which minimizes the difficulties associated with the installation process. In addition, this controller is easy to install and can be placed in standard electrical boxes, making the installation process even easier.

Safety guarantee
The Shelly Qubino Wave 2PM controller offers a high level of security thanks to two-step verification and support for over-the-air firmware updates. You can be sure that your data is protected.

Flexible application
This smart controller is ideal for controlling lighting, electrical appliances and other equipment in your smart home. With it, you can create personalized programs that fit your daily routine or synchronize it with sunrise and sunset. You can also create personalized scenes by combining the Shelly Qubino Wave 2PM controller with other Z-wave devices. This allows for even more advanced control and automation in your home.

Specifications:
Manufacturer | Shelly |
---|
Model | QubinoWave2PM |
---|
Power supply | 110-240V AC / 24V DC +/-10>#/td### |
---|
Energy consumption | < 0.3W |
---|
Power measurement (W) | Yes |
---|
Maximum AC switching voltage | 240V |
---|
Maximum AC switching current | 10A per channel, 16A total, 18A peak |
---|
Maximum DC switching voltage | 30V |
---|
Maximum DC switching current | 10A |
---|
Overheating protection | Yes |
---|
Overload protection | Yes |
---|
Distance | Up to 40m indoors (depending on local conditions) |
---|
Z-Wave™ Repeater | Yes |
---|
Processor | Z-Wave™ S800 |
---|
Z-Wave™ frequency band | 868.4MHz |
---|
Maximum transmitted radio frequency power in frequency bands | < 25mW |
---|
Size | 37 x 42 x 16 ±0.5mm (H x W x D) |
---|
Place | Wall mount |
---|
Maximum torque of screw terminals | 0.4Nm / 3.5lbf |
---|
Cable cross-section | 0.5 to 1.5mm² / 20 to 16AWG |
---|
Length of conductor without insulation | 5 to 6mm |
---|
Housing material | Plastic |
---|
Color | Black |
---|
Ambient temperature | -20°C to 40°C / -5°F to 105°F |
---|
Moisture | 30% to 70% relative humidity |
---|
Maximum altitude | 2000m |
---|
