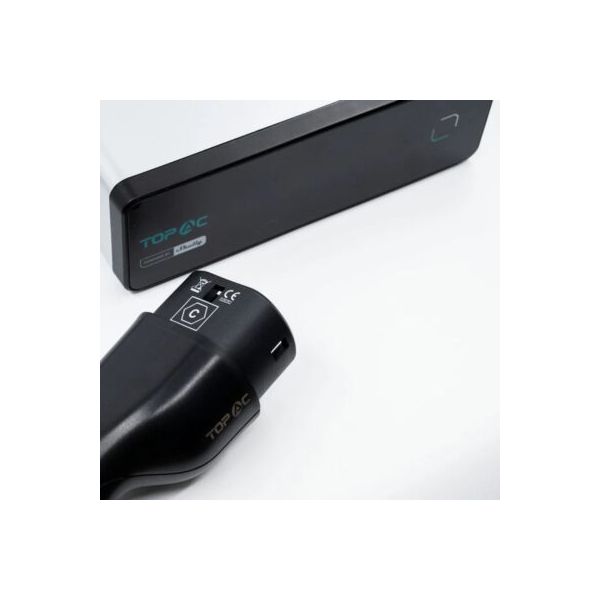

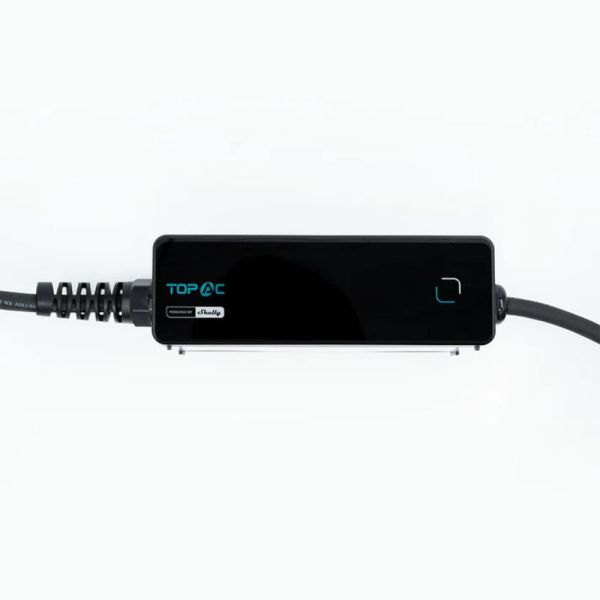

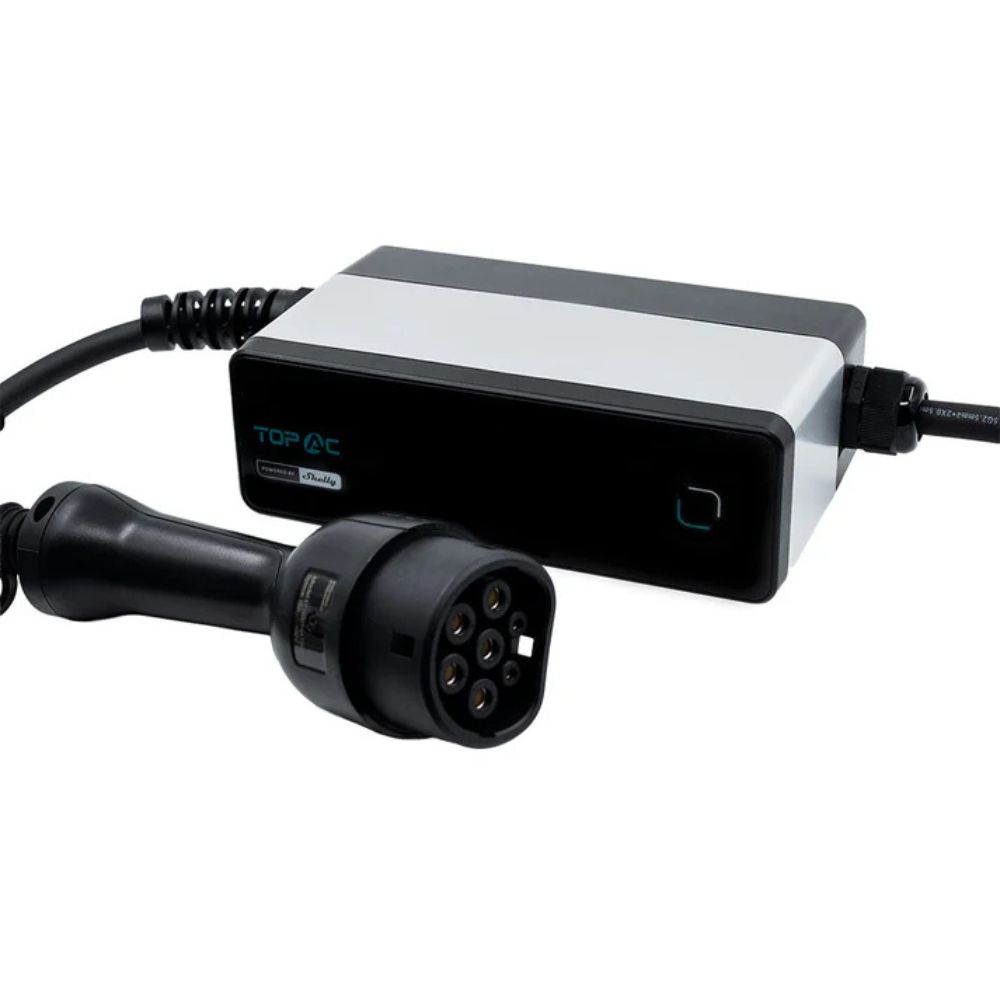

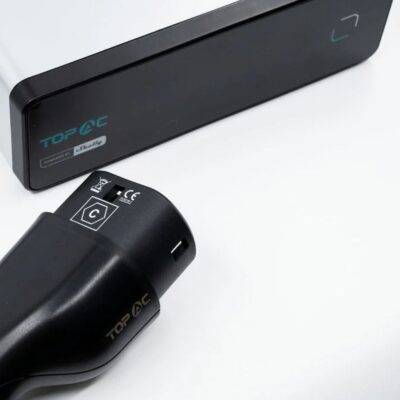

Shelly TopAC Portable EV charger 11kW EVE01-11R – Portable electric car charger, Wi-Fi, Bluetooth

The Shelly TopAC Portable EV Charger 11 kW (EVE01-11R) is a portable, three-phase EVSE that plugs directly into a CEE 16 A industrial outlet and provides up to 11 kW of charging power. It’s ideal for home, workplace, or on-the-go use: with its built-in display and button, the charging current (6–16 A) can be adjusted quickly to match the available electrical capacity at the location.

The TopAC protects both the vehicle and the electrical network with built-in electrical protections (overvoltage, overheating, short circuit, leakage current). The control box is rated IP65, and the cable features a Type 2 (EN62196) connector, making it compatible with most European electric cars. Total cable length is 5.6 m, with approximately 4.7 m on the vehicle side.

The charger includes Wi-Fi + Bluetooth connectivity, a local web interface (on LAN, without the cloud), and remote control via the Shelly Smart Control app. It supports the Auto Balance (dynamic load management) function when paired with a Shelly EM Gen2/Pro meter, so the charging current can be automatically adjusted to the household’s real-time consumption to protect the main breaker.

About Shelly

Shelly specializes in smart energy solutions and retrofit devices. Its products typically communicate over Wi-Fi, offering a local web interface, cloud-based control, and open integration options—easy to install with excellent price/performance.

Key features

• 11 kW portable charger: up to 11 kW from a CEE 16 A (3-phase) outlet with a Type 2 output.
• Adjustable current: quickly switch between 6–16 A using the built-in button with feedback on the display.
• Dynamic load management: Auto Balance with Shelly EM Gen2/Pro meter—automatically decreases/increases charging current according to household load.
• Local web control: direct access via the built-in web interface; cloud-independent use possible.
• App control: Shelly Smart Control app with scheduling, monitoring, and automation.
• Built-in protection: overvoltage, overheating, short circuit, and leakage current protection.
• IP65 control box: designed for outdoor environments.
• Wi-Fi extender & BLE gateway: can extend Wi-Fi range and relay data from BLE devices.

Smart home protocols and platform compatibility

• Wireless connections: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5.
• Local access: built-in web interface (LAN), HTTP Webhooks (URL actions), UDP.
• Integrations: MQTT support; usable in Home Assistant (e.g., via MQTT or local API).
• Monitoring & automation: Shelly Smart Control app; no separate hub required.

Specifications

• Model: EVE01-11R

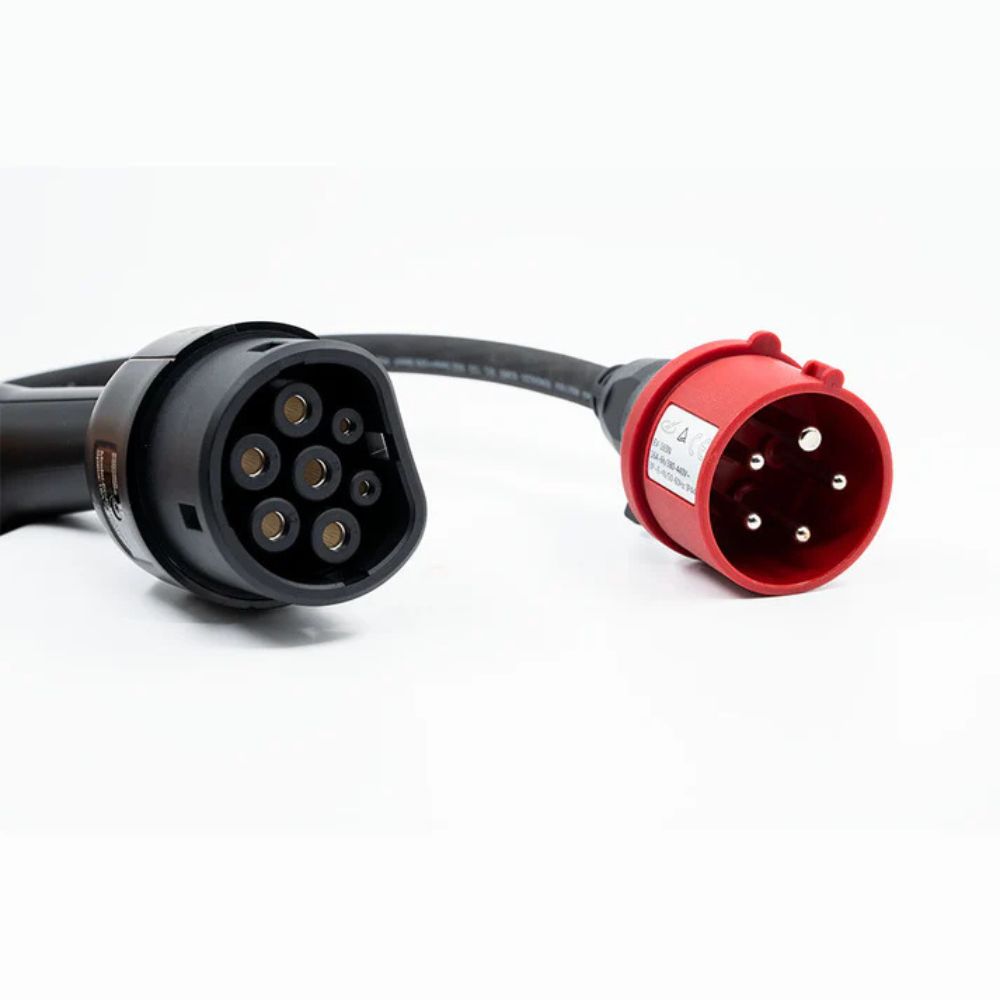

• Connection (to mains): CEE plug, 16 A, three-phase
• Rated input/output: 400 V~; adjustable current 6–16 A
• Max. power: up to 11,000 W
• Charging connector: Type 2 (EN62196)
• Grid systems: TN-C, TN-S
• Total length: ~5.6 m (vehicle-side cable ~4.7 m)
• Cable insulation resistance: > 1000 MΩ (DC 500 V)
• Input cable cross-section: 5×2.5 mm² + 2×0.5 mm²
• Output cable cross-section: 5×2.5 mm² + 1×0.5 mm²
• Operating temperature: −25 °C…+45 °C
• Protection: control box IP65
• Wi-Fi: 802.11 b/g/n; frequency band 2412–2484 MHz; max RF power < 20 dBm; range ~30 m (indoors), ~50 m (outdoors—environment dependent)
• Bluetooth: 5; frequency band 2402–2480 MHz; range ~10 m (indoors), ~30 m (outdoors—environment dependent)
• Smart functions: Schedules (20), Webhooks (20 × 5 URLs), MQTT: yes, UDP: yes, Scripting: no, Advanced schedules: yes, KVS: yes

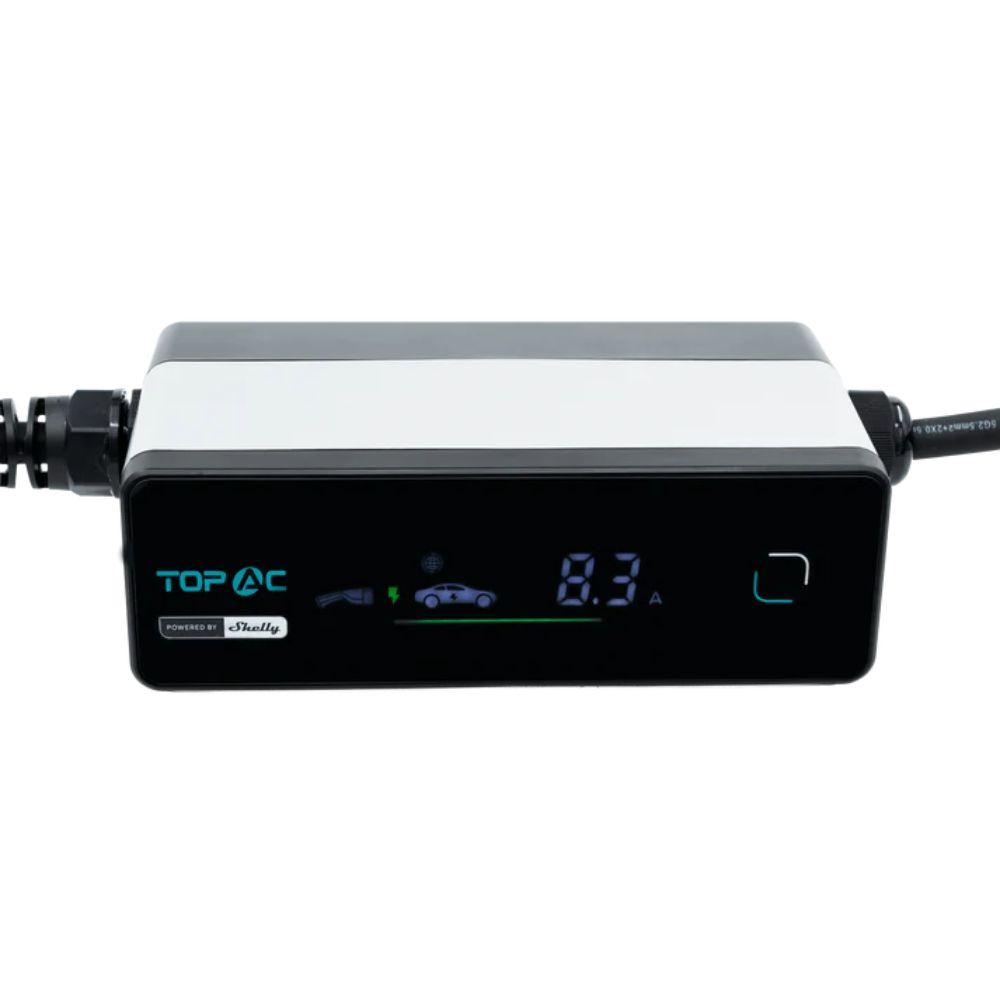

• Display & controls: status and energy display, current-step selection via button
• Dynamic load management: Auto Balance with Shelly EM Gen2/Pro device
• Compatibility: Shelly Smart Control app; local web interface; Home Assistant (MQTT/API)
