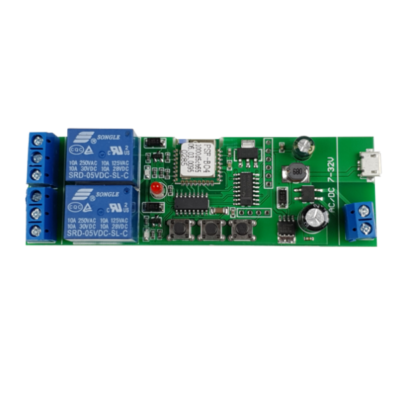

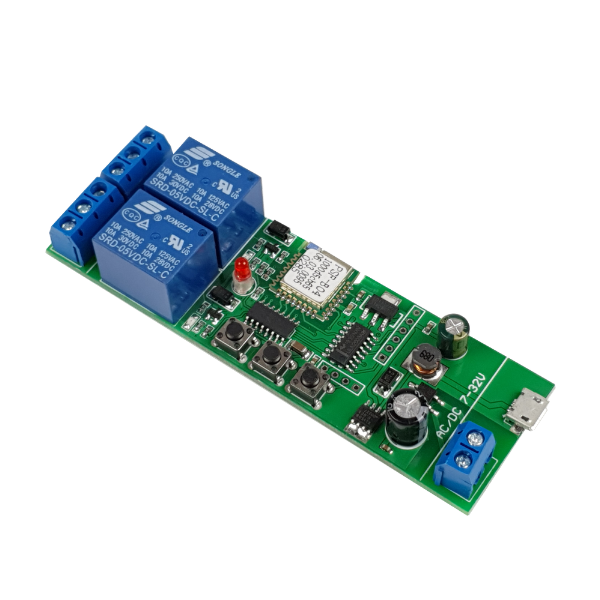

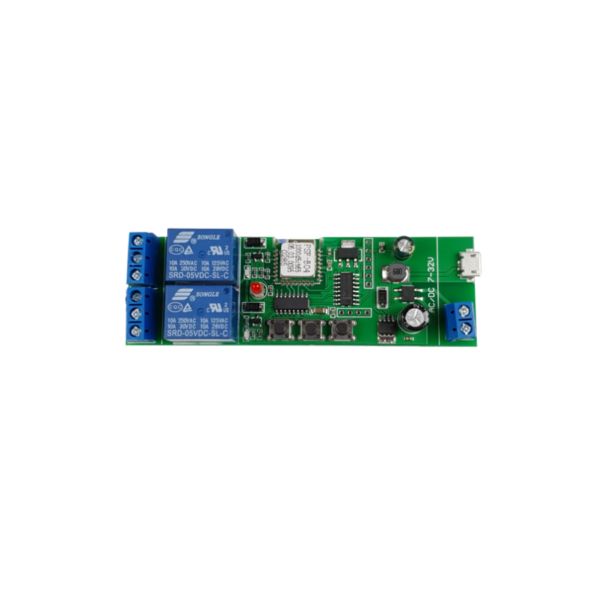

This is a 2-gang smart relay-switch from Sonoff-compatible SmartWise brand, ideal solution for remote control of motorized gates, garage doors, irrigation systems, or other electric devices/circuits. This smart device is compatible with the eWeLink smartphone app managing other Sonoff products. By using the WiFi-equipped smart relay you can close or break any circuits, and turn ON / OFF any devices connected to the relay.
The WiFi smart relay needs a 5V USB or 7V-32V DC power supply. Any connected circuits operate independently from the relay’s power supply, the relay supports 90-250V/10A alternate current connected to COM input or manages 0-30V/10A direct current in NO or NC mode. The smart device manages volt-free dry-contact switching too.
The smart relay is remotely controllable via Internet and iOS (Apple) or Android smartphone App, and you can set scheduled turning ON / OFF. Share remote control in the App with your family.
Supports momentary switch mode, closes or breaks the connected circuits after 1 sec. Ideal solution for remote control of electric gates or PC power adapters.
2 and 4 channel versions are also ideal for engine-control (where 2 or more axis motion is required), because the relay supports “interlock” mode, where switching one of the circuits turns the other circuits automatically off.
Product features:
- Remote ON / OFF – Anytime, anywhere, from now on you can turn all your appliances on and off remotely.
- Relay power supply: 5V DC USB or 7V-32V DC
- No of circuits controlled: 4
- Circuit control: volt-free dry contact or 90-250V/10A alternate current or 0-30V/10A direct current
- Mobil App – free iOS és Android mobil App: eWeLink
- Sync status – Check actual relay status (turned ON or OFF) with the mobile App
- Timer – Various timer functions: single time, scheduled turn on/off, countdown/timer, loop.
- Share control – Control the device together with your family
- Scene – Turn ON / OFF a gang of devices with one tap
- Smart scene – Triggered ON/OFF by temp, hum or other environmental sensors
- Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest
The relay supports three modes: normal (self-toggle) switch mode, momentary switch mode and interlock mode. Choose between any with the button on main panel.
Additional information
| General |
|---|
|
| Smart home protocols |
|---|
|
| Remote control, smart control |
|---|
| Controllable from internet | yes |
|---|
| Cloud mode | yes, default mode is to connect to the eWeLink cloud |
|---|
|
| More features |
|---|
| Manufacturer smartphone app | free app: eWeLink (Android, iOS) |
|---|
| Momentary switching (inching) | yes, by default it operates in momentary switch mode |
|---|
| Colour | without outer protective cover |
|---|
| Dimmer feature | no |
|---|
| DIN rail compatible | no |
|---|
| External switch supported | no |
|---|
| Interlock mode | yes |
|---|
| LAN mode | yes, if the connection with the eWeLink cloud is disconnected, limited features |
|---|
| MQTT support | no |
|---|
| NO/NC switch | yes |
|---|
| Notification functions | eWeLink app notification on smartphone |
|---|
| Overheat protection | no |
|---|
| Power consumption metering | no |
|---|
| Rated current (output) | 10A per circuit |
|---|
| Rated voltage (output) | dry contact, max 30V DC, max. 250V AC |
|---|
| REST API support | no |
|---|
| RF transmitter / receiver | no |
|---|
| Schedulers, timers | yes, 8 timings on the device in offline mode, any further timing can be run from the cloud in online mode |
|---|
| Surge protection | no |
|---|
| Web admin interface | on/off mode (only with subscription, Premium feature) |
|---|
| Wi-Fi | yes |
|---|
| Wi-Fi standards | 802.11 b/g/n (2.4GHz) |
|---|
| Zigbee | no |
|---|
| _Device power supply | AC (below 32V), DC (below 60V), DC 5V |
|---|
| Physical on/off button on device | yes |
|---|
| Device power supply | 5V DC microUSB |
|---|
| Bundle | No |
|---|
| Main category | relay |
|---|
| Dry contact (voltage free) switching | yes |
|---|
| Ethernet (RJ-45) | no |
|---|
| Number of gangs / circuits | 2 |
|---|
| Number of phases | 1 |
|---|
| Size | 67 x 41 x 20 mm |
|---|
| Supported protocols | Wi-Fi |
|---|
| Thread | no |
|---|
| Z-Wave | no |
|---|
| Warranty type | Warranty |
|---|
| Type of the product | relay, smart garage opener |
|---|
| History / Event log | yes: on/off history in the app |
|---|
| Dimensions | 6,7 × 4,1 × 2,0 cm |
|---|
|
