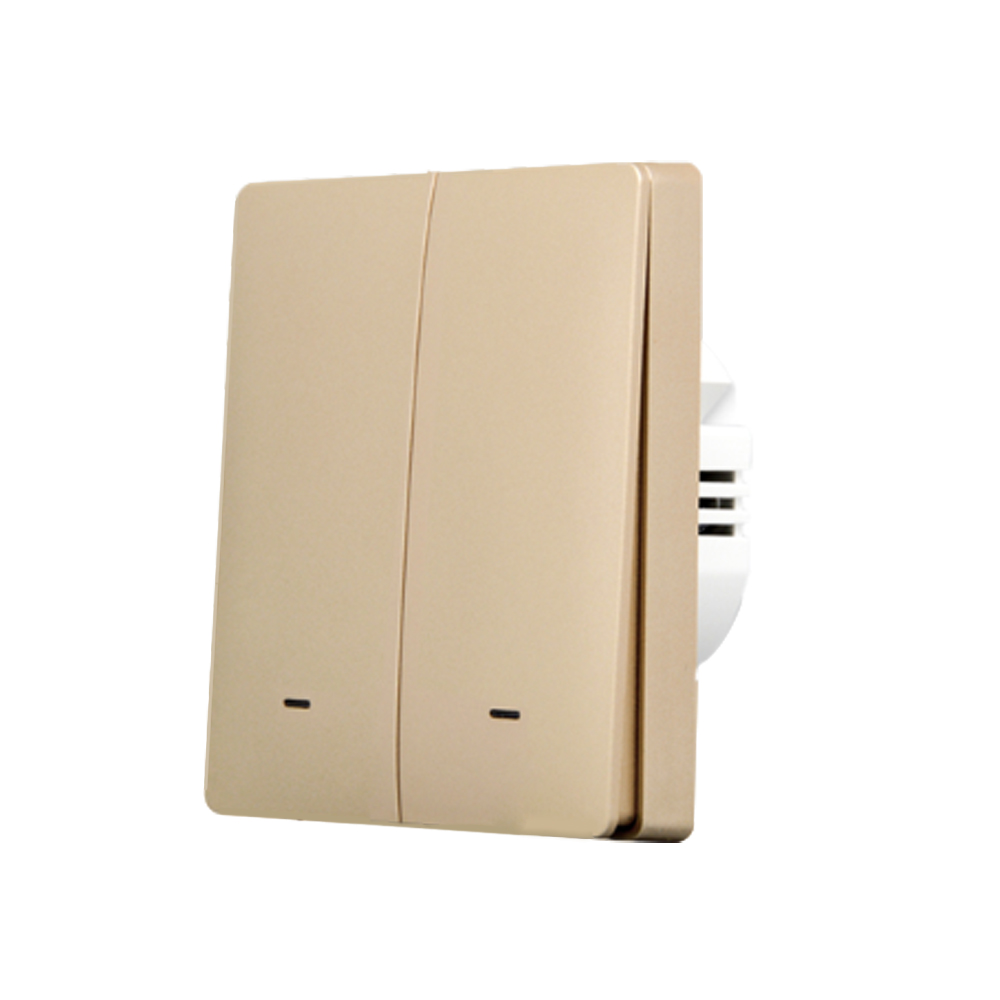

SmartWise B62 UNI Wi-Fi + eWeLink-Remote, 2-gang smart wall switch, universial wiring, physical push-button, gold colour

B62-WIFIBT-GD
EA0857
MANUFACTURERSMARTWISE MPNB62-WIFIBT-GD
SmartWise B6 UNI smart wall switch product family comes with Wi-Fi and physical push-button front panel. This new product now features a chip supporting  Wi-Fi + Bluetooth  connections (instead of the previously typical Wi-Fi + RF 433MHz). The smart wall switch is connected directly...
1995
Χωρίς ΦΠΑ: 16.09
Σε Απόθεμα
+
Στα Αγαπημένα Σύγκριση
Παράδοση
  • — ELTA Courier
  • — ACS Courier
  • — ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ
Τρόποι πληρωμής

SmartWise B6 UNI smart wall switch product family comes with Wi-Fi and physical push-button front panel. This new product now features a chip supporting Wi-Fi + Bluetooth connections (instead of the previously typical Wi-Fi + RF 433MHz). The smart wall switch is connected directly to the Wi-Fi router with the eWeLink app running on the smartphone, so it connects to the same eWeLink smart home platform as Sonoff devices and they do not need a local central unit as they work by default with the eWeLink cloud.

Its Bluetooth module supports quick and easy pairing with the phone and the Wi-Fi network, and its eWeLink-Remote (Bluetooth) protocol receiver can be paired with wireless SmartWise Bluetooth switches and wireless switches, to be used as wireless 2-way switches.

The SmartWise B6 smart light switch is available in 1, 2, 3 gang (button) versions. Also available with white, grey, black and gold push button front panel.

The switch family is also available in a stylish white and black glass front-panel touch-switch version called SmartWise T6, with the same smart features as the physical push-button model.

Wiring

The UNI version of SmartWise smart wall switches support universal wiring: recommended for live + neutral wire, but is also supporting single live wire (no neutral) wiring, so it can be used in any places to replace any traditional wall switches. When wired without neutral, it is recommended for switching lights only, and is compatible with tungsten, LED and CFL. For wiring with live wire only, a small anti-flicker module (included in the product box) must be connected to the lamp.

Smart Home platform

Just like Sonoff's smart switches, they connect to the cloud-based eWeLink app and platform by default, so it works together very well with other brands of the eWeLink app, Sonoff, SmartWise, KingArt, WDYK and Woolley.

It has a quality hardware, and there is no need for a local central unit to operate, as all devices access the factory eWeLink cloud via the internet connection of the Wi-Fi router.

If you want to use it with a local central unit rather than in cloud mode, you can also use the affordable SONOFF iHost central unit. Instead of the cloud eWeLink platform, it can run a local eWeLink platform (eWeLink Cube) without internet connectivity, but it is also capable of running other open source home automation platforms (Home Assistant, NodeRED, etc.)
But you can also use it with the Home Assistant Green hub running the Home Assistant open source platform, since the HA platform also offers integrations to locally interface with Sonoff and other eWeLink devices.

Local control

It has a physical push-button front panel, which allows you to switch the lights on the wall switch as naturally as you would with a traditional switch.

Local remote control

Thanks to the built-in Bluetooth chip, SmartWise wall switches can be remotely controlled with eWeLink-Remote (Bluetooth) wireless switches and remote controllers. These can be used to create a wireless wall-mounted 2-way switching. 2-gang and 3-gang versions: each button on the switch can be individually paired with SmartWise eWeLink-Remote wireless switches and remote controls, each gang/button can be paired with different wireless switches as needed. Note: it is not compatible with Sonoff (R5, S-MATE (R2), etc.) eWeLink-Remote switches/modules.

Functions:

Using an iOS (Apple) or Android smart phone, the smart switch is connected to the Wi-Fi router using the eWeLink APP to connect to the internet. In the APP, you can check the ON/OFF status of the switch at any time, remotely turn the light switch on/off, and set a scheduled on/off. There is also an inching (auto-off) function in the switch, as in most other Sonoff and SmartWise devices, so we can set it to automatically turn off after a set time after being turned on, so that we don't leave the lights on unnecessarily. The remote control in the app can also be shared with others, such as family members or colleagues in an office.

It's an ideal solution for smart control of any lamp or lighting.

Used as a crime prevention solution, it can be programmed to presence simulation, so to turn on or off on the light by timer, so that the outside world thinks you are at home.

And, of course, you can create any other automation (scene) between your eWeLink devices - be they Wi-Fi, Zigbee or even RF - based on sensor data or the status of other devices.

The two- and three-circuit switch versions can be set in the app to interlock mode, in which one circuit switches off when the other circuits are switched on, so that they can be used safely for e.g. shutter control or to operate any motor.


Additional information

General
Brand

SmartWise

Electricity properties
2-way or 3-way switching

SmartWise wireless eWeLink-Remote (Bluetooth) switches can be used for wireless switching as directly paired remote controllers

Smart home protocols
Bluetooth

yes, for pairing with the phone, and Bluetooth receiver for eWeLink-Remote (Bluetooth) based remote control

Remote control, smart control
Controllable from internet

yes

Cloud mode

yes, default mode is to connect to the eWeLink cloud

More features
Bundle

yes

Colour

white

_Device power supply

AC (110V-) (Live and Neutral), AC (110V-) (Live-only)

Device power supply

110V-240V AC ±10>#/p###

Dimmer feature

no

Ethernet (RJ-45)

no

External switch supported

not for wired switches

Interlock mode

yes

LAN mode

yes

Main category

wall switch

Manufacturer smartphone app

eWeLink app

Momentary switching (inching)

yes, inching / auto-off supported

MQTT support

no

Notification functions

eWeLink app notification on smartphone

Number of gangs / circuits

2

Operating temperature range

for indoor use

Physical on/off button on device

yes

Power consumption metering

no

Rated power (output)

0-500W / gang (if wired live+neutral), 3-300W / gang (if wired live wire only)

Rated voltage (output)

110V-230C AC

REST API support

no

RF transmitter / receiver

no

Schedulers, timers

yes, 8 timings on the device in offline mode, any further timing can be run from the cloud in online mode

Size

86 x 86 x 37 mm

Supported protocols

eWeLink-Remote (direct), Wi-Fi

Thread

no

Type of the product

wall switch



Warranty type

Warranty

Web admin interface

on/off mode (only with subscription, Premium feature)

Wi-Fi

yes

Wi-Fi standards

802.11 b/g/n (2.4GHz)

Zigbee

no

Z-Wave

no

Dimensions

8,6 × 8,6 × 3,7 cm

MANUFACTURER
SMARTWISE
MPN
B62-WIFIBT-GD
