SMLIGHT SLZB-MR1 Zigbee+Thread USB gateway adapter with Wi-Fi + Ethernet/PoE

SLZB-MR1 – Zigbee and Thread Adapter via USB, LAN, or Wi-Fi

The SLZB-MR1 is a platform-independent, universal Zigbee adapter offering connectivity via Ethernet, PoE, USB, and Wi-Fi. You can connect the device locally to your hub via USB, through a wired Ethernet connection — even powering it using PoE — or wirelessly over Wi-Fi. The SLZB-MR1 is the latest and most powerful Zigbee + Thread gateway, featuring a multiprotocol architecture that allows simultaneous operation of Zigbee and Thread networks using two separate chips. This makes it an ideal future-proof and flexible solution for Home Assistant, Zigbee2MQTT, ZHA, or even Matter-based systems.

Why Choose the SLZB-MR1?

• Multiprotocol Control: Dual radio chips (TI CC2652P7 + SiLabs EFR32MG21) dedicated to Zigbee and Thread networks
• Matter-over-Thread Support: Future-ready, includes OpenThread Border Router mode
• Three Connection Options: Use via USB, Ethernet, or Wi-Fi
• Firmware: Supports Z-Stack and Ember/EZSP stacks, updateable via web interface
• SLZB-OS System: ZHub mode, VPN, OTA updates, multilingual support, customizable features
• Low Power Consumption: Operates on just 1.5W with USB-C or PoE power input

Key Features

• +20 dBm transmission power on all channels
• ESP32-based for reliable operation
• Compatible with Home Assistant, Zigbee2MQTT, ZHA, Domoticz, openHAB, Matter, and Node-RED
• Two external SMA antennas + built-in PCB antenna
• Six status LEDs and multifunction control button
• Mountable on DIN rail (with accessory) or wall; includes screw and adhesive mounting options

Compatibility & Integration

The SLZB-MR1 is a perfect companion for home automation setups:

• Home Assistant: Full support for ZHA and Zigbee2MQTT
• Zigbee2MQTT: Advanced device and network management
• Matter: Future-proof with Matter-over-Thread support
• Node-RED: Visual automation interface
• MQTT Systems: Compatible with Domoticz, openHAB, and other platforms

Power Supply

• USB-C input: 5V DC
• PoE support: 48V via Ethernet
• Energy-efficient: consumes as little as 1.5W in full operation

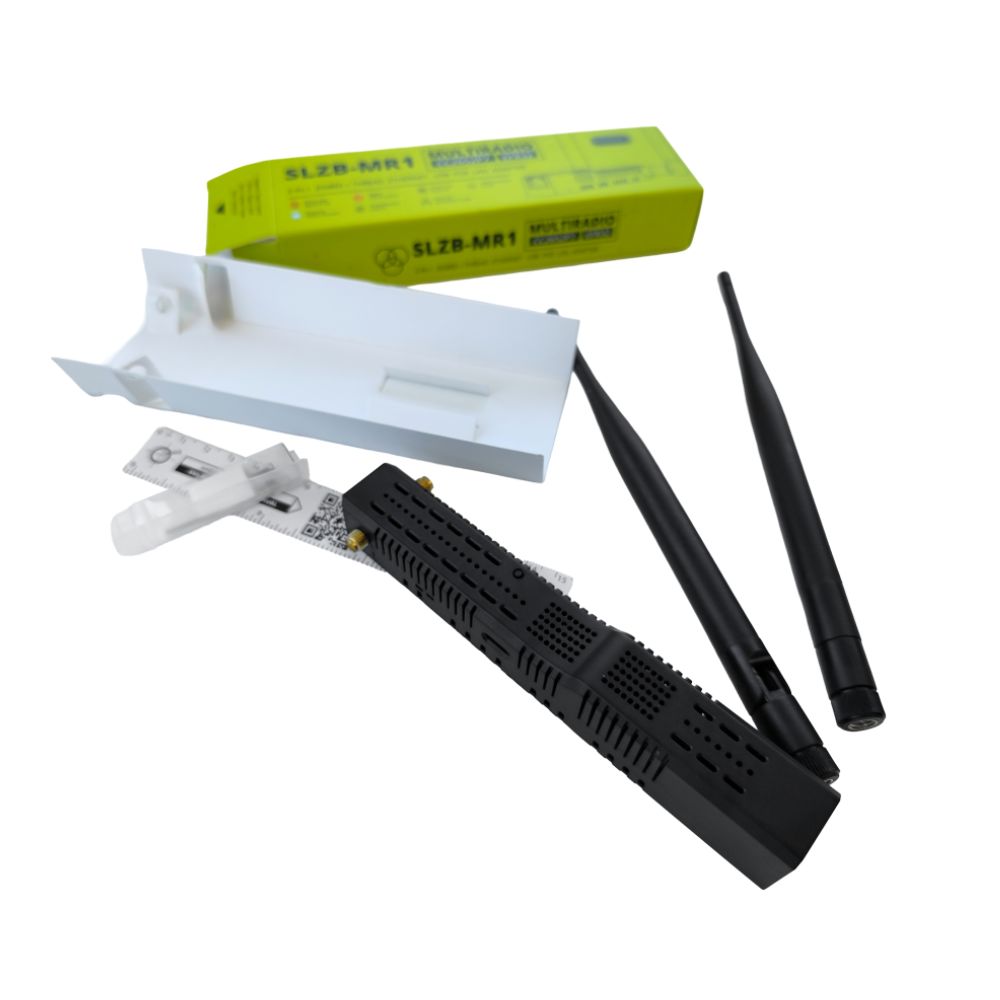

Package Contents

• SLZB-MR1 gateway
• 2 high-gain 2.4 GHz antennas
• USB-C cable
• Mounting screws, mini screwdriver, measuring tape
• Quick start guide

Ideal If You:

• Want to manage both Zigbee and Thread networks with a single device
• Need Matter support for future-ready automation
• Prefer connecting via USB, LAN, or Wi-Fi
• Use Home Assistant, Zigbee2MQTT, or other open-source platforms
