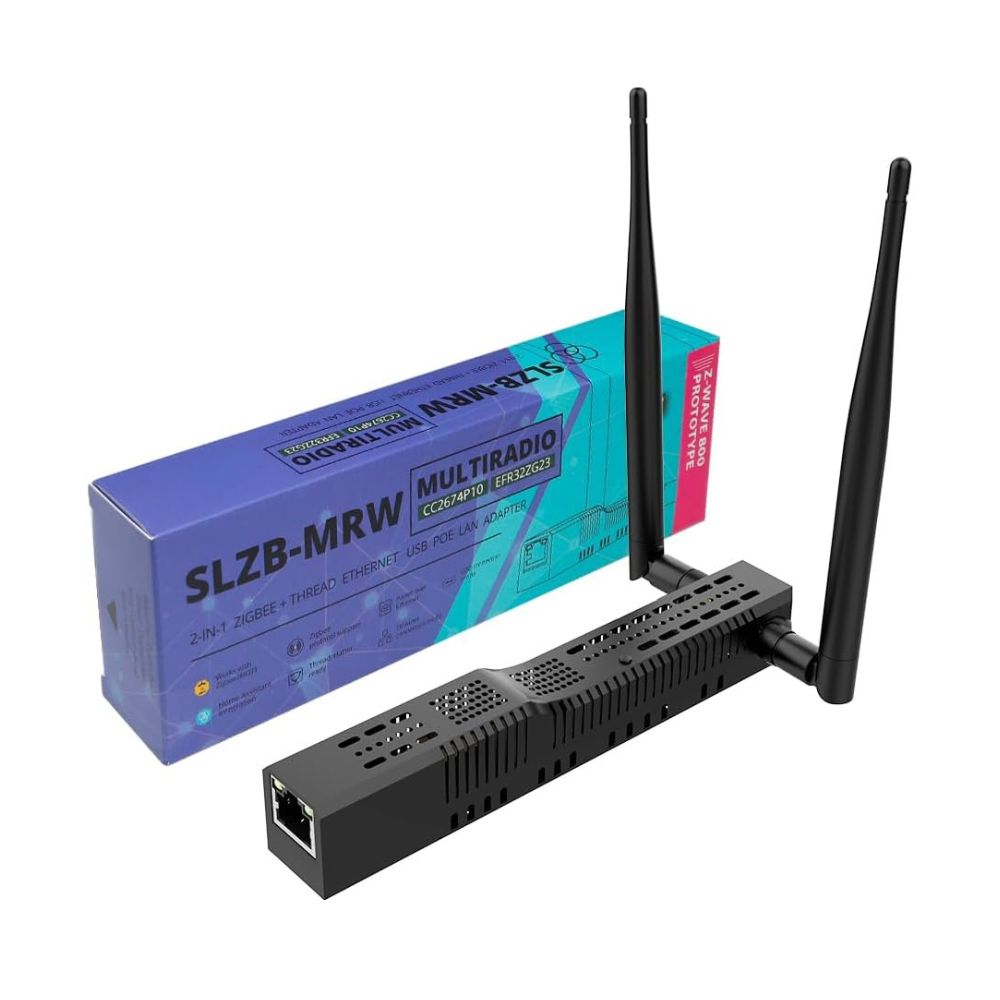

The SMLIGHT SLZB-MRW10 is a multi-protocol Zigbee/Thread + Z-Wave adapter with Ethernet and PoE (Power over Ethernet) support. It is an ideal solution for smart home hubs as it can handle Zigbee 3.0, Thread (Matter-over-Thread), and Z-Wave networks, offering flexible connectivity options: Ethernet, Wi-Fi, or USB. The device comes with pre-flashed firmware, making it ready to use out of the box.
Its powerful signal amplifier (+20 dB) and high-gain antenna (+5 dBi) ensure stable and reliable coverage. Thanks to its compact, discreet housing, it can be easily placed in home or office environments. With PoE support (IEEE 802.3af standard), installation requires fewer cables. The device operates with low energy consumption (1.5–3 W), making it efficient for continuous use.
The SLZB-MRW10 is compatible with the most popular smart home platforms, including Home Assistant (ZHA, Zigbee2MQTT), openHAB, and HomeSeer, and enables communication between multiple networks and buildings via VPN.
About SMLIGHT
SMLIGHT delivers innovative solutions in the smart home sector, focusing on Zigbee, Thread, and Z-Wave adapters and gateways. Their products stand out with reliable hardware, open platform support, and wide compatibility, making them ideal for both DIY users and professional integrators.
Main Features
- Zigbee & Matter-over-Thread: supports Zigbee 3.0 and Matter-over-Thread protocols
- Flexible connectivity: via Ethernet, Wi-Fi, or USB
- PoE support: power over Ethernet (IEEE 802.3af standard)
- Home Assistant compatibility: works with ZHA, Zigbee2MQTT, and other platforms
- Signal boost: +20 dB amplifier and +5 dBi antenna for extended range
- Compact design: minimalistic and discreet housing
Smart Home Protocols and Platform Compatibility
- Protocols: Zigbee 3.0, Thread (Matter-over-Thread), Z-Wave
- Platform support: Home Assistant (ZHA, Zigbee2MQTT), openHAB, HomeSeer
- Local and remote access: via Ethernet, Wi-Fi, USB
- VPN support: secure access for remote sites
Smart Functions
- Plug & Play – comes with pre-flashed firmware
- One-click protocol switching (Zigbee, Thread, Z-Wave)
- Remote firmware updates
- Password-protected secure access
- Automation and scripting options
- Status LEDs (4 units)
- Built-in control button
Technical Specifications
- Chipset: Texas Instruments CC2652P (Zigbee/Thread), ESP32 dual-core 240 MHz
- USB/UART: CP2102N (Silicon Labs)
- Ethernet: LAN8720 (Microchip), 10/100 Mb
- Antenna: external L-shaped +5 dBi (Baishi), internal Wi-Fi/Bluetooth antenna
- Power supply: USB-C or PoE IEEE 802.3af (48V)
- Power consumption: 1.5–3 W
- Radio output gain: up to +20 dB
- Operating modes: Zigbee coordinator (ZHA/Z2M), Zigbee router, Matter-over-Thread router, standalone Zigbee hub
- Integration: Zigbee2MQTT, ZHA, Home Assistant
- Bluetooth support: Yes
- ESP32 flasher: integrated, autoboot via DTR/RTS
- Dimensions (adapter): 160×24×28 mm, 86 g
- Dimensions (antenna): 192×12×12 mm, 15 g
- Package size: 180×25×40 mm
Additional information
| General |
|---|
| Brand | SMLIGHT |
|---|
| Factory SKU ID | SLZB-MRW10 |
|---|
|
| Smart home protocols |
|---|
|
| More features |
|---|
| Compatible with Matter standard | yes |
|---|
| _Device power supply | 5V⎓1A, PoE |
|---|
| Ethernet (RJ-45) | yes |
|---|
| IP rating | indoor use |
|---|
| Main category | hub |
|---|
| MQTT support | Zigbee2MQTT, ZHA |
|---|
| Notification functions | yes |
|---|
| Operating humidity range | 0% – 60>#/p### |
|---|
| Operating temperature range | +5 – +35°C |
|---|
| Plug&Play installation | yes |
|---|
| Size | 160 x 24 x 28 mm |
|---|
| SKU | SML-HUB-SLZB-MRW10 |
|---|
| Supported protocols | Bluetooth, Ethernet / LAN, Thread, Wi-Fi, Z-Wave, Zigbee |
|---|
| Thread | yes |
|---|
| Type of the product | bridge / gateway / coordinator / hub |
|---|
|
|
|---|
| Warranty type | Warranty |
|---|
| Web admin interface | yes |
|---|
| Wi-Fi | yes |
|---|
| Wi-Fi standards | 802.11 b/g/n (2.4 GHz) |
|---|
| Zigbee | yes, Zigbee 3.0 |
|---|
| Dimensions | 17,0 × 2,5 × 17,0 cm |
|---|
|
