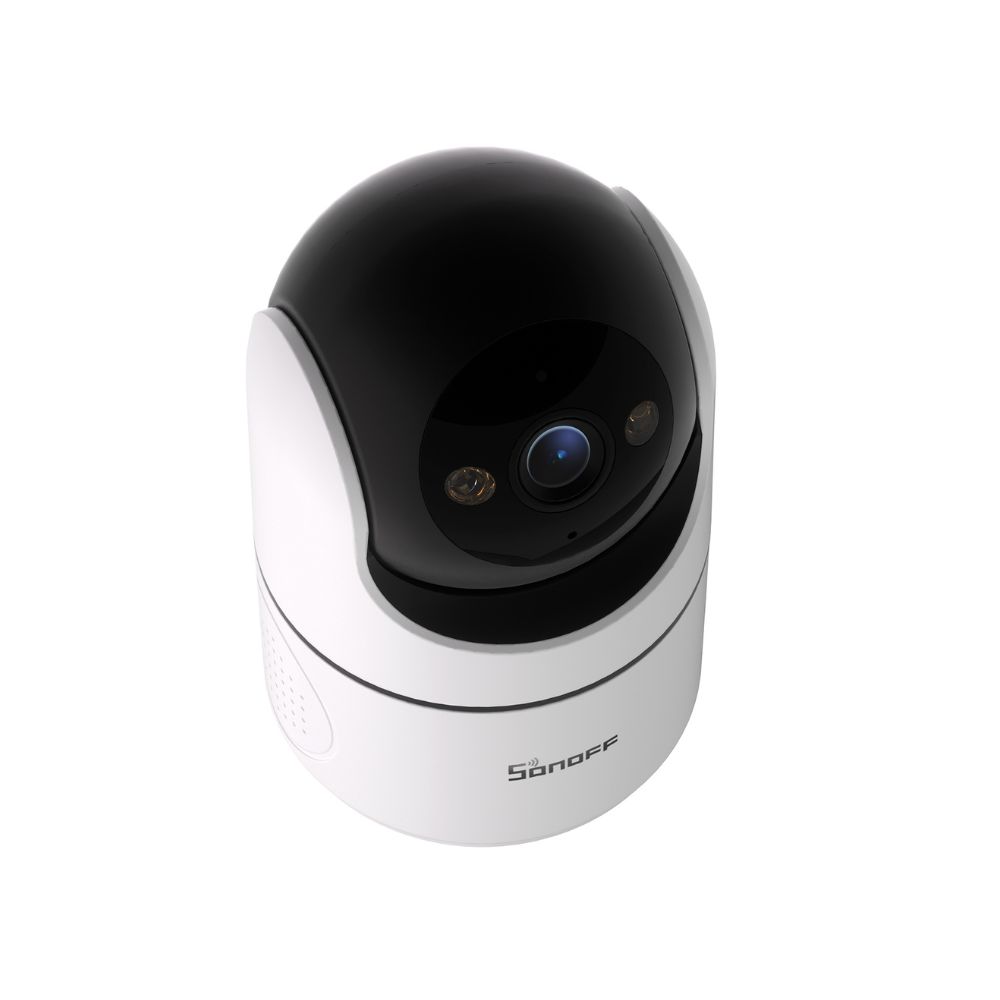

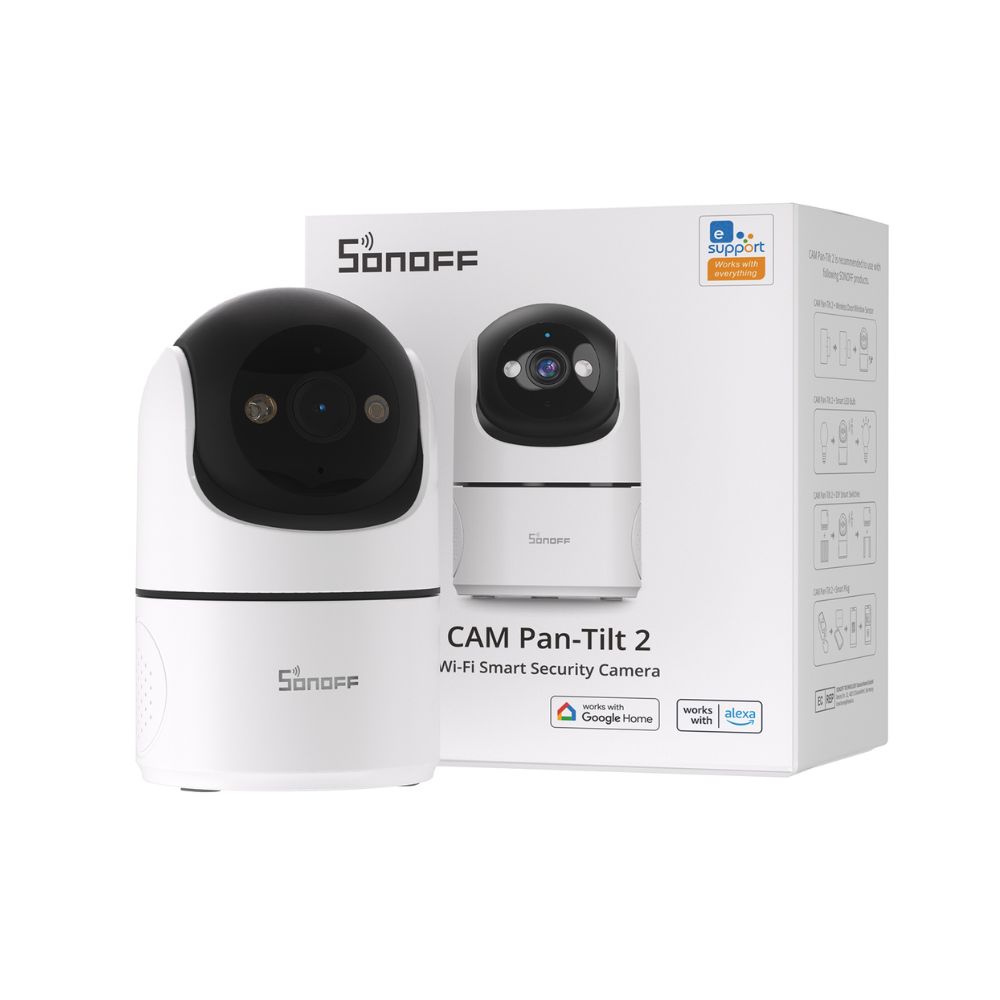

The Sonoff CAM Pan-Tilt 2 (CAM-PT2) is an advanced indoor security camera delivering 1080p HD resolution with H.264 video compression, providing detailed and clear surveillance for your home. Its 360° panoramic view ensures full coverage without blind spots, while the enhanced night vision guarantees 24/7 monitoring.
Equipped with built-in two-way audio (microphone and speaker), you can instantly communicate with family members. The camera supports preset positions, allowing you to focus on key areas with a single tap. It also features a physical privacy mode, where a cover automatically shields the lens to protect your privacy. Whether for home or office use, the CAM-PT2 is a reliable and versatile indoor security solution. It easily integrates into your existing smart home system and includes a range of intelligent features for enhanced security and convenience.
This Plug & Play device is easy to install, powered via USB-C cable and easily configured through the official eWeLink app.
About Sonoff
Sonoff is a well-known brand offering affordable, high-quality smart home devices powered by Wi-Fi and zigbee. Their product range includes relays, switches, sensors, smart plugs, gateways, and cameras—most of which work with the eWeLink app. Many Sonoff devices are also compatible with other platforms, including the open-source Home Assistant system. Increasingly, their new devices support the Matter smart home standard, offering native integration with Apple HomeKit and other Matter-compatible hubs.
Key Features
- 1080p Live View: Delivers a crisp and detailed image of the monitored area.
- 360° Panoramic Coverage: Provides full coverage without blind spots (340° horizontal + 180° vertical).
- Two-Way Audio: Built-in microphone and speaker for real-time communication with others.
- Human Motion Detection: Detects human movement and sends notifications.
- Enhanced Night Vision: Infrared and white LEDs ensure visibility even in complete darkness.
- Physical Privacy Mode: Mechanical cover blocks the lens to protect your privacy when needed.
- Cloud and Local Storage: Supports cloud storage and Micro SD cards up to 128GB (card not included).
- Preset Positions: Easily focus on critical zones with one tap.
- Indoor Use Only: Not weatherproof – designed for indoor environments.
Smart Home Integration and Platform Compatibility
- Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4GHz.
- Official Platform: Works with the eWeLink app (Android & iOS) for remote access and control.
- Cloud Platform Integration: Supports Amazon Alexa and Google Assistant for voice control and video display on compatible screens.
- Advanced Integration: ONVIF and RTSP support allow streaming to third-party systems (e.g. Home Assistant, Frigate, NVR systems).
- Voice Control: Compatible with Amazon Alexa and Google Assistant.
Smart Features
- Live Video: View live feed via the eWeLink app.
- Motion & Human Detection: Sends push notifications when movement is detected.
- Remote Control: Pan, tilt, and adjust settings through the eWeLink app.
- Event Log: Records motion detection events for later viewing.
- Video Downloads: Save footage to a microSD card (max. 128GB) or cloud storage.
- Automations & Scenes: Trigger actions with other Sonoff devices, like turning on lights when motion is detected.
- Cloud & Local Operation: Supports cloud recording (via eWeLink subscription) and local streaming/recording via RTSP or ONVIF.
- MicroSD Recording: Local recording to SD card (card not included).
- Multi-User Sharing: Grant access to other eWeLink users.
- Physical Lens Cover: Mechanical shutter enhances lens protection and privacy.
Additional Specifications
- Product Dimensions: ∅74 x 119 mm
- Material: ABS plastic
- Color: Black & White
- Power Supply: 5V⎓2A (USB Type-C input)
- Power Adapter: Not included; must be purchased separately.
- Operating Temperature: -10℃ ~ 40℃
- Operating Humidity: 5% ~ 95% RH, non-condensing
- Certifications: CE/FCC/RoHS
- Installation Options: Tabletop placement or ceiling mount
Additional information
| General |
|---|
| Brand | Sonoff |
|---|
| Factory SKU ID | CAM-PT2 |
|---|
|
| Installation and operation |
|---|
| Built-in memory | not built in, you can use a max. 128 GB memory card (minimum Class 10) |
|---|
|
| Smart home protocols |
|---|
|
| Remote control, smart control |
|---|
| Controllable from internet | yes |
|---|
| Cloud mode | yes |
|---|
|
| More features |
|---|
| Colour | white |
|---|
| _Device power supply | 5V DC |
|---|
| Device power supply | 5V DC |
|---|
| EAN code | 6920075743173 |
|---|
| Ethernet (RJ-45) | no |
|---|
| Image and video capture | yes, to eMMC storage, NAS or cloud. |
|---|
| Lens | F2.0 |
|---|
| Main category | camera |
|---|
| Manufacturer smartphone app | free app: eWeLink (Android, iOS) |
|---|
| Notification functions | eWeLink app notification on smartphon when detecting movement, siren alarm on the camera's speaker when it detects movement |
|---|
| Operating humidity range | 5%-95>#/p### |
|---|
| Plug&Play installation | yes |
|---|
| Supported protocols | Wi-Fi |
|---|
| Thread | no |
|---|
| Type of the product | camera |
|---|
| Wi-Fi | yes |
|---|
| Wi-Fi standards | 802.11 b/g/n (2.4GHz) |
|---|
| Zigbee | no |
|---|
| Z-Wave | no |
|---|
| IP rating | IP20 |
|---|
| Night mode | yes |
|---|
| NVR integration | yes, ONVIF and RTSP protocols supported |
|---|
| Operating temperature range | -10℃-40℃ |
|---|
| RF transmitter / receiver | no |
|---|
| Rotability | yes |
|---|
| Voice | microphone and speaker |
|---|
|
