Sonoff MINI-RBS Smart Roller Blind Module – Matter-Compatible Controller for Motorized Shades

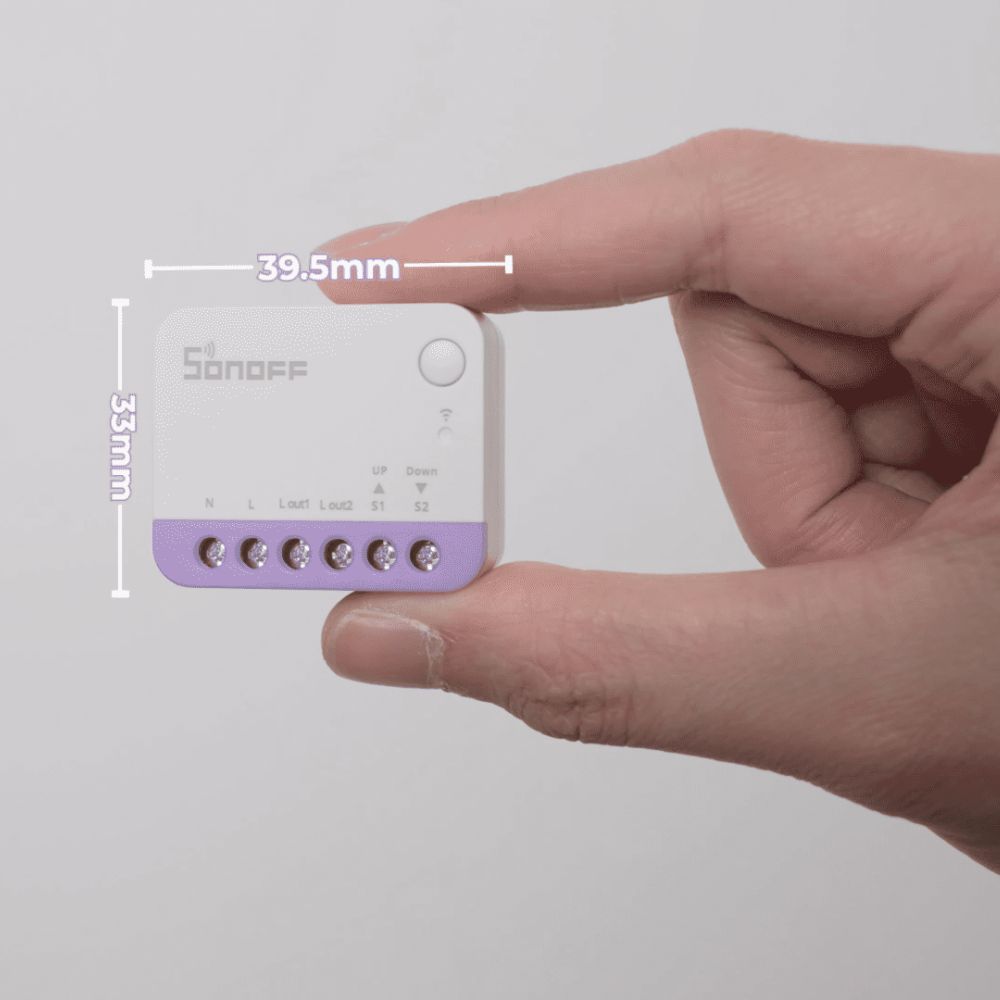

The Sonoff MINI-RBS is ideal for users who want to upgrade their existing motorized blinds or shade motors with smart control features. It offers bidirectional (up/down) control, step-based adjustment, and percentage-based position management. Its compact size (33 x 39.5 x 16.8 mm) allows for easy installation behind wall switches or inside junction boxes. It supports a wide variety of shading types—ideal for curtain control, roller blinds, awnings, or even motorized projector screens in home theaters. When controlling blinds or shades, the module helps maintain optimal light and temperature conditions, for example, by lowering the blinds during summer heat. Thanks to its calibration function, users can precisely control the position of shades with percentage accuracy.
A standout feature is its compact design—it fits into standard 80 mm EU wall boxes. The Sonoff MINI-RBS is significantly smaller than the previous Sonoff Dual R3 module, making it easier to install behind wall switches.
The mini module supports Wi-Fi + Bluetooth and is not only compatible with Sonoff’s eWeLink app but also integrates seamlessly with platforms like Apple HomeKit, Google Home, Alexa, and Home Assistant via the Matter smart home standard, enabling compatibility with virtually any smart home ecosystem.
When used with the eWeLink app and cloud platform, the module’s built-in eWeLink-Remote (Bluetooth) gateway supports pairing with Sonoff’s wireless R5 switches (available in white and gray) and the S-MATE2 Bluetooth module. This allows for control via both wired push-button switches and wireless ones.
About the Sonoff Brand
Sonoff is a globally recognized smart home brand, best known for its Wi‑Fi and Zigbee-based modules (e.g., relays, sensors, switches). Its Wi‑Fi products are compatible with the eWeLink platform and integrate with Alexa, Google Home, and SmartThings through cloud services. Most of their devices are also easily integrated into the open-source Home Assistant ecosystem.
Many of Sonoff’s newer products support the Matter smart home standard, making them natively compatible with Apple HomeKit and other Matter-compliant hubs.
Key Features
- Smart control for electric blinds, curtains, and awnings
- Fits into standard EU wall boxes, even behind wall switches
- Compatible with most motorized shades (up to 1A load)
- Wi-Fi-based remote control via the eWeLink mobile app
- Matter support: native compatibility with Apple Home, Google Home, Alexa, Home Assistant, and SmartThings
- Scheduled operation based on sunrise, bedtime, or arrival
- Position control by percentage: easily adjust how open the blinds are
- Scheduling: automate operations based on daily routines
- Calibration: reduces hardware inaccuracies and extends motor lifespan
- Supports AC motors up to 1A
Smart Home Protocols and Platform Compatibility
- Protocols: Wi‑Fi (802.11 b/g/n 2.4GHz)
- Local remote control: physical external switches can be connected to the S1/S2 inputs (up/down); compatible with Sonoff’s eWeLink-Remote (Bluetooth) wireless devices (R5 switch, S-MATE2 module) for wireless control
- Native platform: eWeLink (iOS, Android)
- Matter compatibility: Apple Home, Google Home, Alexa, SmartThings – including position control via Matter
- Cloud services: Google Home, Alexa, SmartThings via eWeLink integration
- Third-party: IFTTT (via eWeLink, Premium subscription required)
- Integration options: Home Assistant – via eWeLink plugin or SonoffLAN
- Voice control: Alexa, Google Assistant, Siri Shortcuts (eWeLink/Siri shortcut)
Smart Features
- Remote position query and percentage-based control (0–100%) via Matter/eWeLink app
- Raise/lower/stop blinds
- Scheduling – timed open/close routines
- Motor calibration (learn upper/lower endpoints)
- Smart scenes – e.g., fully open blinds at sunrise, close at night – configurable in eWeLink
- Voice control – e.g., “Hey Google, open the shutter”
Electrical Specifications
- Power supply: AC 100–240 V, 50/60 Hz; motor load: max. 1 A
- Neutral wire required: Yes
- Outputs: bidirectional – “L out1” and “L out2” for motor up/down control
- Power monitoring: energy, voltage, and current measurement
- External switch inputs: S1/S2 – supports momentary or toggle switches
- Recommended wire gauge: 18–14 AWG solid or stranded copper wire
- Easy installation: Connects to existing roller blind motors and wall switches, fits into standard EU recessed boxes
Additional Information
- Model: Sonoff MINI-RBS
- Controller chip: ESP32
- Dimensions: 39.5 x 33 x 16.8 mm
- Operating temperature: -10°C – 40°C
- Operating humidity: 5–95% RH (non-condensing)
- Lifespan: >10,000 switching cycles
- Certifications: TUV, CE, FCC, RoHS, includes overload protection certification
Additional information
General |
---|
Brand | Sonoff |
---|
Factory SKU ID | MINI-RBS |
---|
|
Smart home protocols |
---|
Bluetooth | built-in eWeLink-Remote (Bluetooth) receiver and gateway |
---|
|
Remote control, smart control |
---|
Controllable from internet | yes, through the app |
---|
|
More features |
---|
Colour | white |
---|
Compatible with Matter standard | yes |
---|
_Device power supply | (110V-)230V AC |
---|
Device power supply | 100V – 240V AC |
---|
EAN code | 6920075743180 |
---|
External switch supported | yes |
---|
History / Event log | yes: on/off history in the app |
---|
Interlock mode | no |
---|
IP rating | IP20 |
---|
Main category | roller shutter controller |
---|
MQTT support | no |
---|
Operating humidity range | 5% – 95% RH |
---|
Plug&Play installation | no |
---|
Schedulers, timers | yes |
---|
Size | 39.5 x 33 x 16.8 mm |
---|
Supported protocols | Wi-Fi |
---|
Warranty | 12 Month |
---|
Warranty type | Warranty |
---|
Wi-Fi | yes |
---|
Wi-Fi standards | 802.11 b/g/n (2.4GHz) |
---|
Zigbee | no |
---|
Z-Wave | no |
---|
Dimensions | 3,3 × 3,95 × 1,68 cm |
---|
|
