SONOFF MINI-ZB2GSL-E Two-channel ZigBee wall switch without nat.

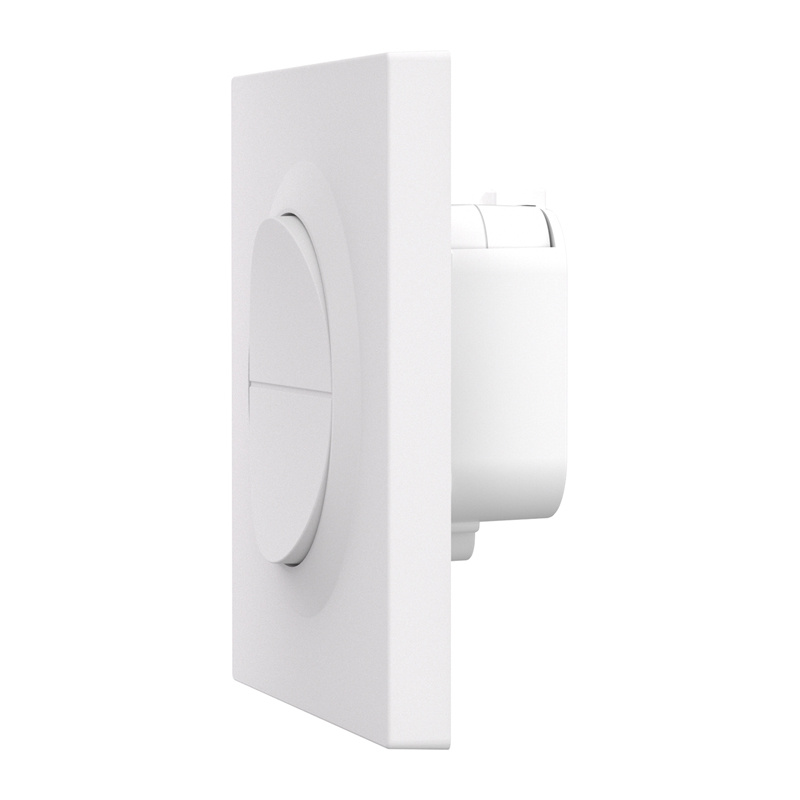

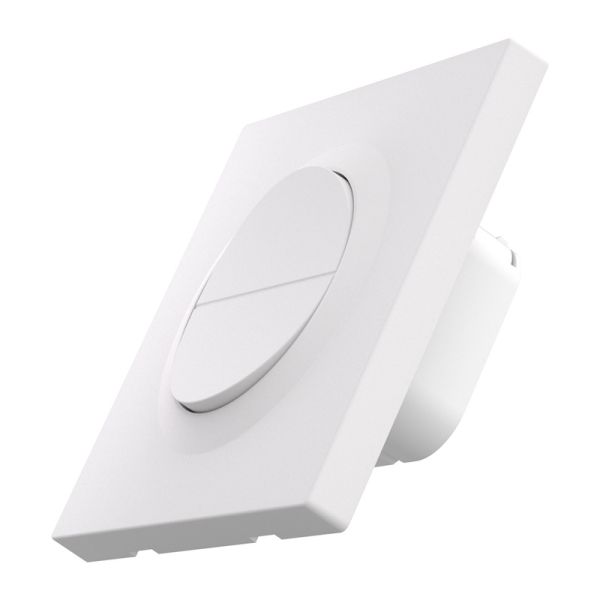

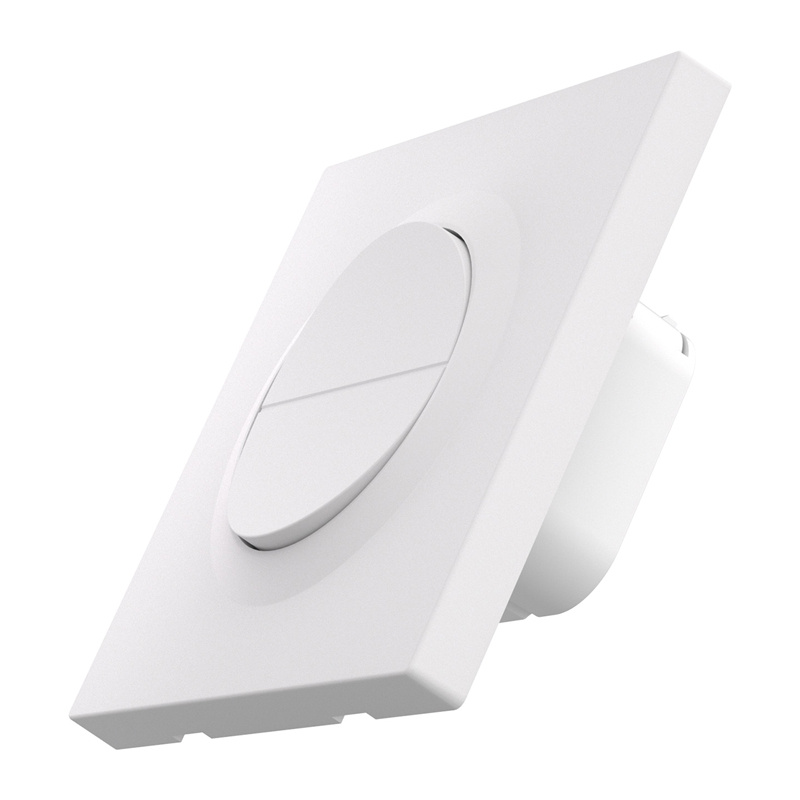

SONOFF MINI-ZB2GSL-E Two-channel ZigBee Wall Switch (without neutral wire)

SONOFF MINI-ZB2GSL-E is a state-of-the-art two-channel ZigBee 3.0 wall switch, designed specifically for installations without a neutral wire (No Neutral). It allows independent control of two lighting circuits, offers support for scenes, schedules and voice control, while maintaining a minimalist, aesthetically pleasing flush-mount design. It is an ideal solution for upgrading older electrical installations without the need for additional wiring.

Installation without neutral wire - maximum possibilities

The switch is designed to operate without the N-wire connection, which greatly simplifies installation in older buildings and apartments. It does not require an additional capacitor, making installation faster and simpler. The minimum load per channel is 3 Watt, which ensures stable operation with most standard light sources. Note: the switch is designed to control classic lighting only - it is not compatible with smart bulbs, dimmable bulbs or inductive loads.

Two channels, scenes, schedules and more

The two-channel design allows you to control two independent circuits, such as a ceiling lamp and a wall lamp or two lighting zones in a room. This solution guarantees fewer switches on the wall, greater visual consistency and ease of use - both manually and from the app. The MINI-ZB2GSL-E also supports smart scenes, schedules and timers, allowing for full automation of lighting. There is also a Power-On State function, which allows you to define the behavior of the light after a power outage and return - such as leaving it off or turning it on with a delay. This is a practical solution for increased comfort and safety of use.

ZigBee commitment - fast and reliable local control

The device supports ZigBee Binding, i.e. the direct connection of a switch to another ZigBee device (e.g. relay or lighting) in systems such as Home Assistant (ZHA, Zigbee2MQTT). This makes control local without the cloud, ensuring immediate response and reliability even in the absence of internet.

Wide compatibility with smart home platforms

The switch works with the eWeLink app and Home Assistant (ZHA and Zigbee2MQTT). It is compatible with a wide range of ZigBee hosts, including Zigbee Bridge Pro, Zigbee Bridge Ultra, iHost, NSPanel Pro and popular ZigBee Dongles (ZBDongle-P/E, Dongle Plus MG24, Dongle Lite MG21). It supports voice control via Amazon Alexa and Google Home, while integration with Apple Home is possible via Matter Bridge (a compatible Matter gateway is required, such as in the eWeLink CUBE ecosystem). MINI-ZB2GSL-E acts as a ZigBee end device (end device) and does not act as a network router.

Safety, durability and ease of installation

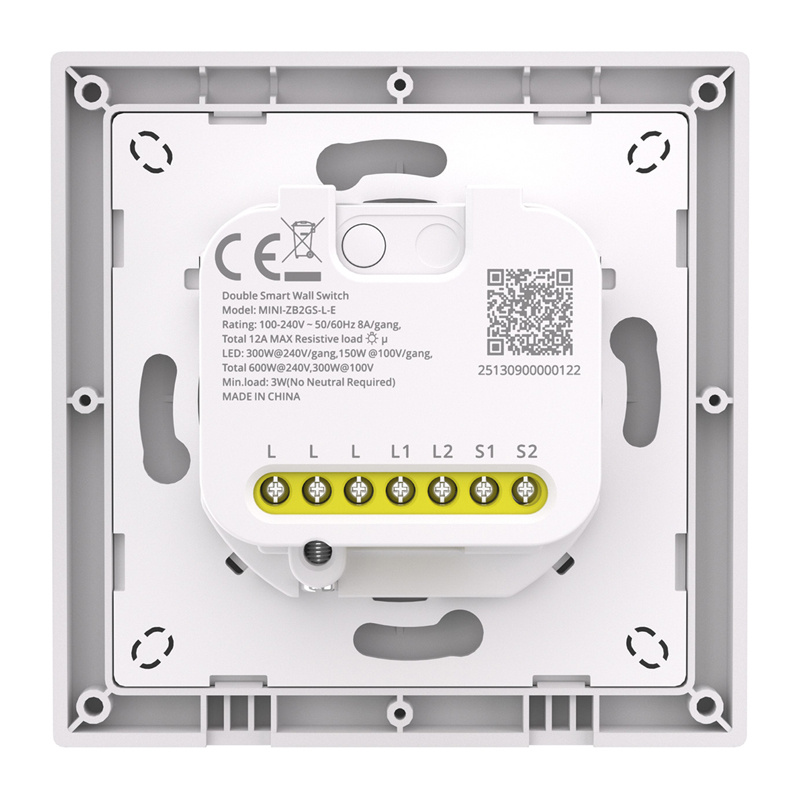

The fireproof PC plastic housing, overload protection and long-life relay (up to 100,000 cycles) ensure safe and stable use for years. The device complies with CE and RoHS standards and fits standard type 86 mounting boxes and European round boxes (Ø60 mm). Configuration is done in a few steps in the eWeLink application - a compatible ZigBee hub is required for operation. The device also supports remote OTA software updates, which allows the development of functions without disassembly.

Included: The device includes: 1:

• SONOFF MINI-ZB2GSL-E two-channel ZigBee wall switch (without neutral wire)
• Mounting screws
• Operating instructions
