SONOFF MINI-ZBRBS-E ZigBee Smart Roller Shutter Switch

SONOFF MINI-ZBRBS-E ZigBee Smart Roller Shutter Switch

SONOFF MINI-ZBRBS-E is a ZigBee 3.0 smart switch that allows you to easily control your roller blinds, shutters or curtains - manually, from an app, automatically with a schedule or by voice. It offers precise adjustment of the opening level, fast responses and stable operation even without internet access, while fitting into standard European installation boxes. It is a solution for those who want to increase the comfort of their window coverings and integrate them into a modern smart home.

Precise control of the position of blinds and automations

The switch allows you not only to open and close the blinds, but also to precisely adjust their position as a percentage. This allows you to let in as much light as you need - for example, by slightly opening the blinds in the morning or covering them almost completely in the evening. The motor calibration function allows you to adapt the operation of the switch to your specific installation and ensures repeatable, predictable blind movements. The MINI-ZBRBS-E is also ideal for automation. You can set schedules for opening and closing the blinds at specific times, create smart scenes (such as "leaving home" or "night") and combine its operation with other sensors, such as door sensors. This is not only a convenience, but also a greater sense of privacy and security in the home.

Stable ZigBee network and integration with popular platforms

The device operates on the ZigBee 3.0 standard and also acts as a ZigBee router, amplifying the signal in the mesh network. As a result, it helps to increase the stability of connections between other ZigBee devices in the home, which is especially important in larger apartments or single-family homes. In addition, the switch can be easily integrated with open source systems, such as Home Assistant (ZHA or Zigbee2MQTT), as well as the eWeLink ecosystem. The device can work with voice and smart home platforms, such as Amazon Alexa, Google Home, Apple Home and SmartThings. Note: for the correct operation of SONOFF MINI-ZBRBS-E, a connection to a compatible ZigBee gateway is required.

Ready for material

Once the switch is placed on the same LAN as a compatible Matter hub (such as the Zigbee Bridge Ultra), it can be integrated into the Matter ecosystem. This paves the way for even broader compatibility and easier connection of devices from different manufacturers into a single system.

Local and voice control support

The roller shutters can be controlled locally (LAN), which means low latency and reliable operation even in the absence of internet. In addition, after integration with appropriate platforms, voice control is possible - a single command is enough to move the roller shutters to the desired position.

Easy installation and wide compatibility

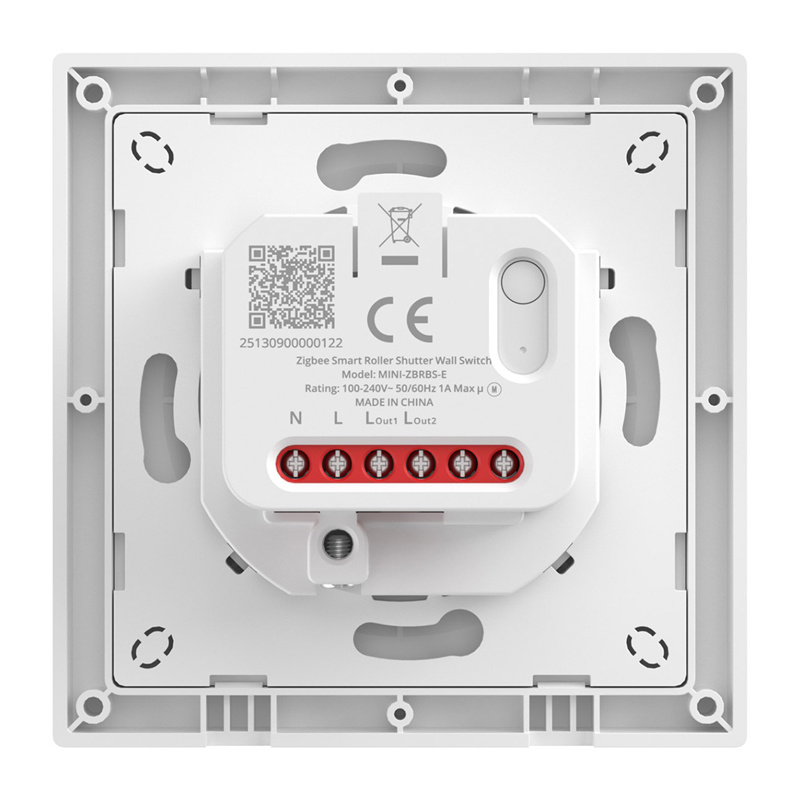

SONOFF MINI-ZBRBS-E is designed for typical installations used in European homes. It fits both Ø60 mm round mounting boxes and type 86 boxes, so it works easily when upgrading existing lighting fixtures. The switch works with 4-wire and 5-wire AC roller shutter motors, equipped with a neutral wire and lines for changing the rotation direction (up/down). The well-thought-out terminal layout clearly separates the 100-240V power supply, motor direction control and S1/S2 inputs for the external switch, making installation easy and maintaining classic wall control alongside smart functionality.
