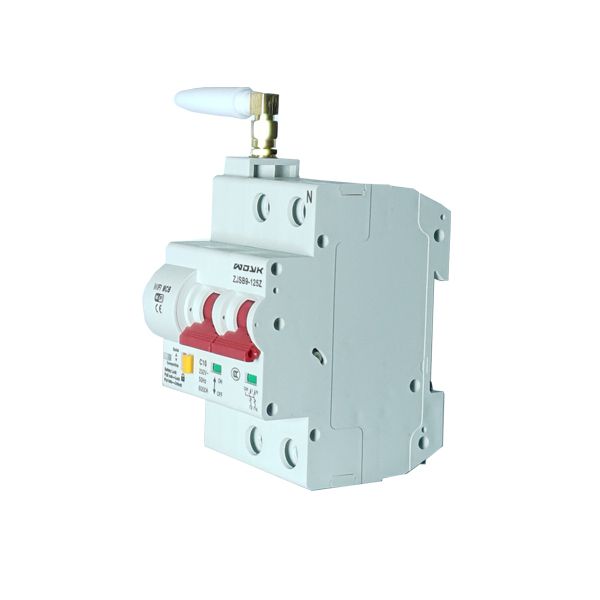

WDYK MCB 63A 2P is a 2-pole (1P + 1N) smart MCB (smart mini circuit breaker), equipped with Wi-Fi and support for eWeLink cloud and eWeLink app. It's a high performance version, it supports max. 63A.
This type has NO built-in power meter, only MCB POW and RCBO POW types are capable of measuring power consumption and provide overload protection, this type does not support these features.
This device has Live and Neutral both on the input and output side and cuts both live and neutral when it is turned off. Using the eWeLink app, one may turn ON / OFF the breaker via Internet and iOS (Apple) or Android smartphone App, and also one can set scheduled turning ON / OFFs.
Using eWeLink app's push notification feature, you may also set a smart phone push notification to get immediately notified when the MCB turns off.
The device has a physical button too, similarly to traditional breakers. Its ON/OFF button has a motor inside, so you can remotely turn it on of off. Share remote control in the App with others is also supported.
This smart MCB provided a convenient way of remote management of your MCBs, wherever you are, you can check MBC ON/OFF status and remotely manage the device..
Product features:
- a smart MCB - a smart Mini Circuit Breaker
- Equipped with Wi-Fi, connects to eWeLink cloud via Wi-Fi router, controllable with eWeLink app, no need for a local hub
- 2-pole breaker for Live and Neutral wire
- Remote ON / OFF – Anytime, anywhere, from now on you can turn all your appliances on and off remotely.
- Mobile App – free iOS and Android mobile App: eWeLink
- Sync status – Check actual relay status (turned ON or OFF) with the mobile App
- Timer – Various timer functions: single time, scheduled turn on/off, countdown/timer, loop.
- Share control – Control the device together with your family
- Group control – Group silimar devices and turn them all ON / OFF at once
- Smart scene – Triggered ON/OFF by temp, hum or other environmental sensors
- Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest
- eWeLink-compatible - uses eWeLink cloud and eWeLink app, compatible with Sonoff and SmartWise products
Additional information
| General |
|---|
|
| Smart home protocols |
|---|
|
| Remote control, smart control |
|---|
| Controllable from internet | yes |
|---|
| Cloud mode | default mode is connecting to the eWeLink cloud |
|---|
|
| More features |
|---|
| Operating temperature range | -25℃ – 65℃ |
|---|
| Voice control | Amazon Alexa and Google Assistant compatible |
|---|
| Web admin interface | on/off mode (only with subscription, Premium feature) |
|---|
| Wi-Fi | yes |
|---|
| Wi-Fi standards | 802.11 b/g/n (2.4GHz) |
|---|
| Wiring | 230V AC (live and neutral) |
|---|
| Zigbee | no |
|---|
| Power consumption metering | no |
|---|
| Rated current (output) | 63A |
|---|
| Product type | smart, Wi-Fi, eWeLink app compatible MCB (mini circuit breaker), 2P, 63A |
|---|
| Rated voltage (output) | 220-240V AC |
|---|
| _Remote control options | Wi-Fi |
|---|
| REST API support | no |
|---|
| RF transmitter / receiver | no |
|---|
| Schedulers, timers | yes, 8 timings on the device in offline mode, any further timing can be run from the cloud in online mode |
|---|
| Overload protection | no |
|---|
| Surge protection | no |
|---|
| Thread | no |
|---|
| _Type of the product | circuit breaker (MCB, RCBO), relay |
|---|
| Supported integrations | Amazon Echo, Echo Dot, Amazon Tap, Google Home, Google Nest, IFTTT (IFTTT integration with subscription, Premium feature) |
|---|
| Number of gangs / circuits | 1 |
|---|
| Installation | 220V-240V AC wiring, installaton on a DIN-rail of an electric cabinet |
|---|
| IP rating | IP20 |
|---|
| LAN mode | yes, if the connection with the eWeLink cloud is disconnected, limited features |
|---|
| Manufacturer smartphone app | yes, free app: eWeLink (Android, iOS) |
|---|
| Momentary switching (inching) | yes |
|---|
| MQTT support | no |
|---|
| Notification functions | eWeLink app notification on smartphone can be set for ON and OFF |
|---|
| _Device power supply | AC (110V-) (Live and Neutral) |
|---|
| Device power supply | 220-240V AC |
|---|
| Dimmer feature | no |
|---|
| DIN rail compatible | yes |
|---|
| Direct local remote control | no, only though an RF Bridge or eWeLink-Remote hub |
|---|
| Ethernet (RJ-45) | no |
|---|
| Embedded relay | yes |
|---|
| External switch supported | no |
|---|
| History | yes:on/off history in the app |
|---|
| Z-Wave | no |
|---|
| Dimensions | 5,4 × 11,5 × 7,4 cm |
|---|
|
