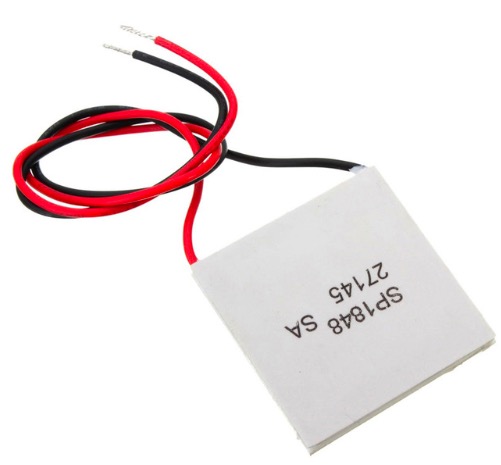

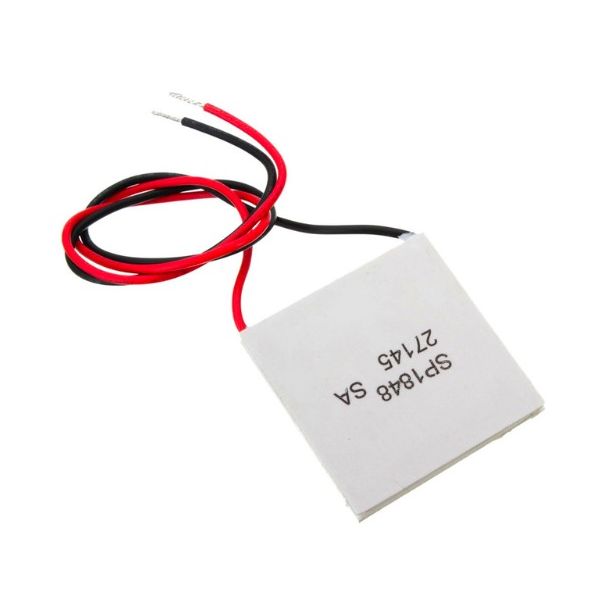

TEG Module SP1848-27145 Peltier Thermoelectric Power Generator

Κωδικός Κατασκευαστή (MPN): HR0214-42A

ΚΩΔΙΚΟΣ: AA0379

Features -Small size, -Light weight, long life, -No moving parts, easy to move, -High reliability and no pollution -Colding side posts with the words -Heating side is empty -Red wire to positive, black wire to the negative, it generate electricity when...

€4⁵⁹

Χωρίς ΦΠΑ: €3.70

Σε Απόθεμα

+ −

Παράδοση

— ELTA Courier
— ACS Courier
— ΓΕΝΙΚΗ ΤΑΧΥΔΡΟΜΙΚΗ

Τρόποι πληρωμής

Περιγραφή
Χαρακτηριστικά
Skroutz Αξιολογήσεις

Features

-Small size,

-Light weight, long life,

-No moving parts, easy to move,

-High reliability and no pollution

-Colding side posts with the words

-Heating side is empty

-Red wire to positive, black wire to the negative,

it generate electricity when the temperature difference happened

Specifications

Model：SP1848-27145

Color ：white

Lead Length: about 30CM

Size: 40MM * 40MM* 3.4MM

20 degree temperature difference: open-circuit voltage 0.97V, generated current: 225MA

40 degree temperature difference: open circuit voltage 1.8V, generated current: 368MA

60 degree temperature difference: open circuit voltage 2.4V, generated current: 469MA

80 degree temperature difference: the open circuit voltage 3.6V, generated current: 558MA

100 degree temperature difference: open circuit voltage 4.8V, generated current: 669MA

The above values are for reference only, the wiring in actual use,

and the step-up board, there will be loss of current

Package included

1x chip / in a pack
