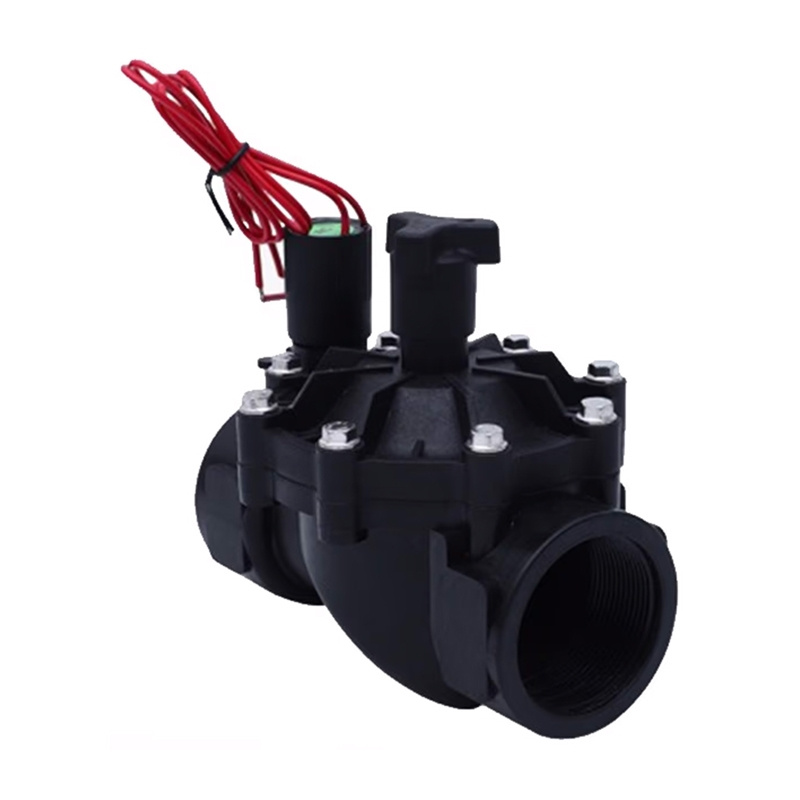

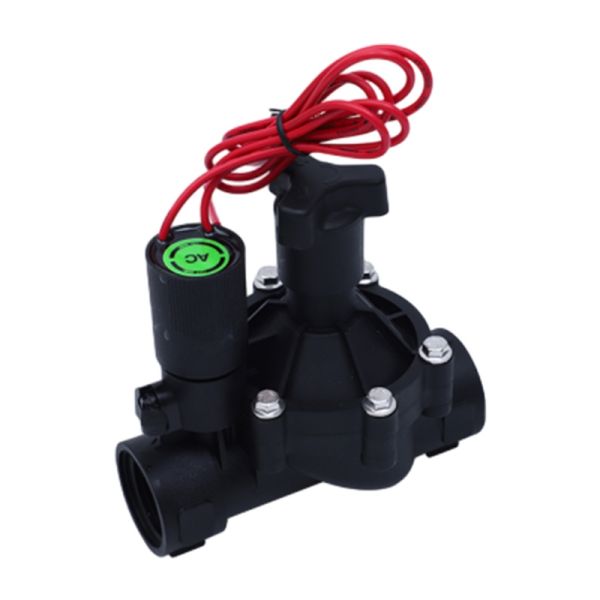

AC 1" RainPoint Garden Solenoid Valves

AC 1" RainPoint Garden Solenoid Valves

The RainPoint solenoid valve is designed to effectively control water flow in low-flow irrigation systems. It works well in gardens, greenhouses and other small spaces that require precise watering management. With a 24V AC power supply and the ability to manually control flow, the valve combines reliability and convenience.

Effective operation in a variety of conditions

The valve operates over a wide range of flows from 0.05 to 9 m³/h and pressures from 0.5 to 8 bar, making it suitable for both simple and more complex installations. Thanks to its ability to withstand liquid temperatures of up to 60°C, it can handle domestic water and diluted soluble fertilizers perfectly.

Long lifespan

The glass-fiber reinforced nylon casing provides resistance to mechanical damage and weather conditions, while the EPDM (ethylene propylene diene monomer, a synthetic rubber with high resistance to weather conditions and chemicals) rubber membrane guarantees tightness and durability. The device is characterized by high resistance to chemical corrosion and cavitation phenomena, which translates into long and trouble-free operation.

Low energy consumption

The valve is characterized by very low power consumption: the starting current is 0.3 A and the holding current is 0.18 A, which makes it possible to connect several valves to a single controller. The power supply is AC (alternating current) 24V ±10%, 50/60 Hz, which is standard in most irrigation control systems.

Ease of use

The valve features a manual switch and flow control knob for easy testing and adjustment without having to start the entire system. With clear flow direction indications and compact dimensions (126 x 124 x 90 mm), installation is quick and easy.

Specifications:
