Garden solenoid valves DC 1" RainPoint

Garden solenoid valves DC 1" RainPoint

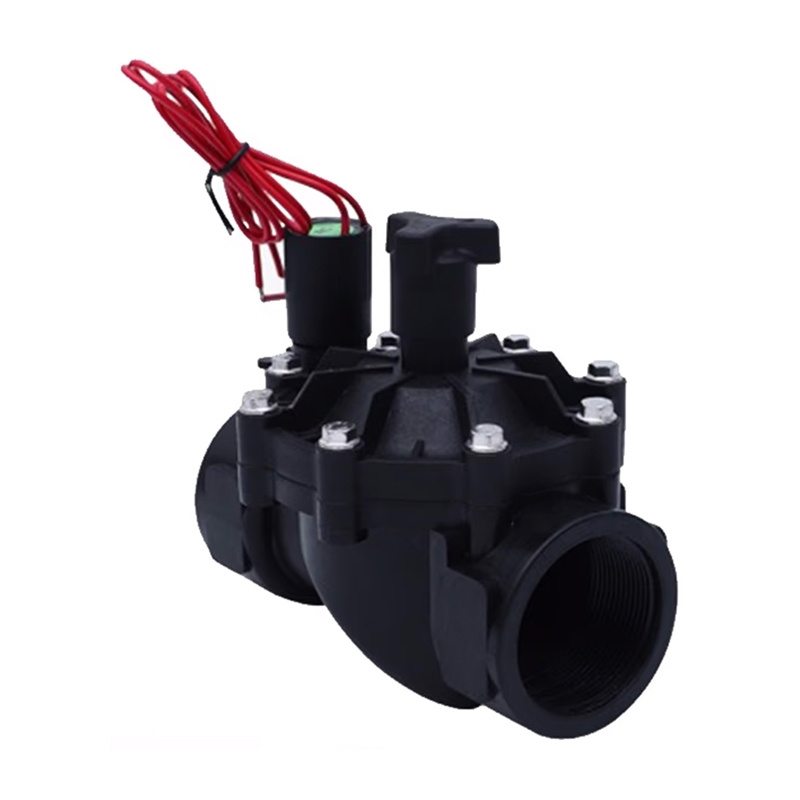

The RainPoint solenoid valve is designed to effectively control water flow in low-flow irrigation systems. It works well in gardens, greenhouses and other small spaces that require precise watering management. With a 12V DC power supply and the ability to manually adjust the flow, the valve combines reliability with ease of use.

Effective operation in a variety of conditions

The valve operates over a wide range of flows from 0.05 to 9 m³/h and pressures from 0.5 to 8 bar, making it suitable for both simple and more complex installations. Thanks to its ability to withstand liquid temperatures of up to 60°C, it can handle domestic water and diluted soluble fertilizers perfectly.

Long lifespan

The glass-fiber reinforced nylon casing provides resistance to mechanical damage and weather conditions, while the EPDM (ethylene propylene diene monomer, a synthetic rubber with high resistance to weather conditions and chemicals) rubber membrane guarantees tightness and durability. The device is characterized by high resistance to chemical corrosion and cavitation phenomena, which translates into long and trouble-free operation.

Energy saving

Thanks to the low power consumption, it is possible to connect several valves in parallel in one system. The solenoid head operates in the DC voltage range of 12V ±10% (9-15V) and the control pulse does not exceed 100 ms, which allows for effective control with minimal power consumption.

Ease of use

The valve is equipped with a manual switch and flow control knob for easy testing and adjustment without having to start the entire system. With clear flow direction indications and compact dimensions (126 x 124 x 90 mm), installation is quick and easy.
